Linear actuators

LA76

Versatile electric linear actuator that delivers both robustness and long-term reliability. It excels in challenging environments and is a wise choice for a wide array of industrial machinery and applications that require high-level performance.

LA76

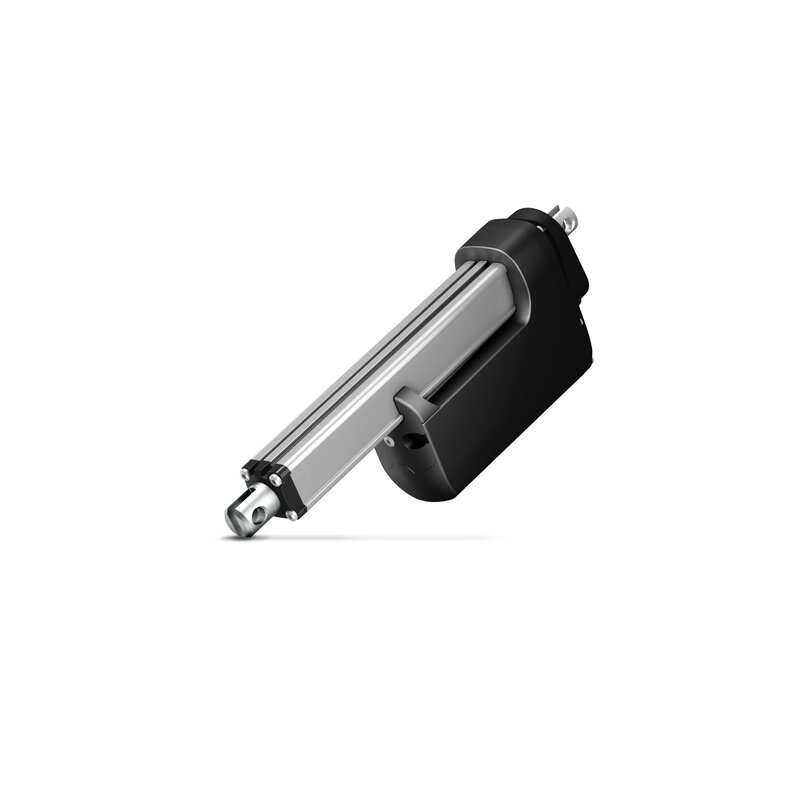

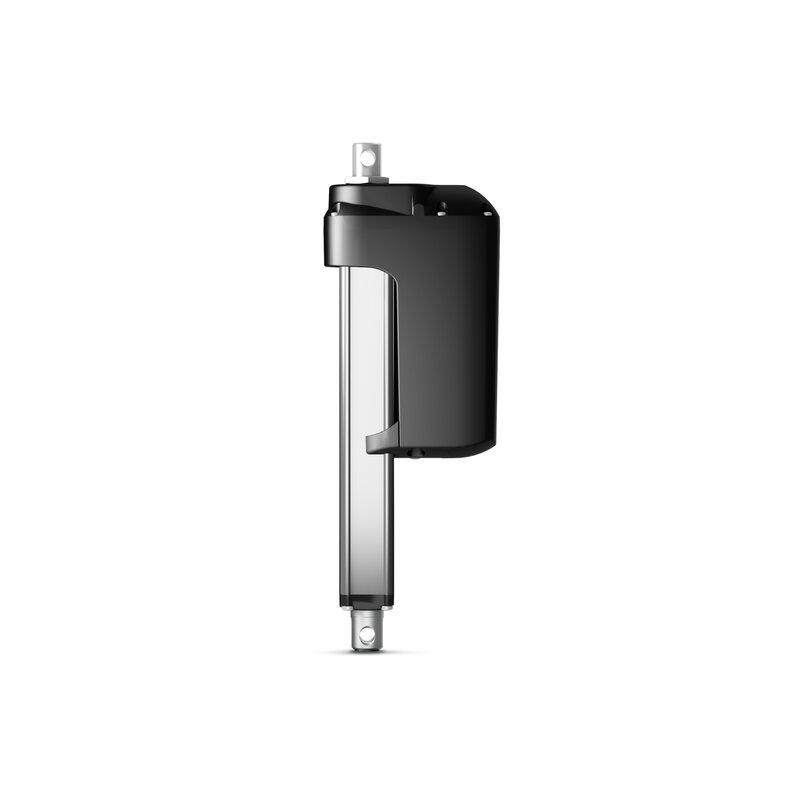

The LA76 is a robust and highly versatile electric linear actuator.

Equipped with a brushless DC motor (BLDC) this actuator offers an extended service life. It has been tested to run a minimum of 200,000 cycles at maximum load and maximum duty cycle, showcasing its long-term performance.

This maintenance-free actuator is designed to excel in harsh environments and undergoes rigorous testing  to ensure durability against dust, vibrations, salt vapours, water ingress, heat, and shock.

The LA76 is well-suited for a broad range of applications in areas such as material handling, industrial automation, marine and outdoor power equipment.

  • Max load: 6,800 N
  • Max. speed: 142 mm/s
  • Stroke length: 100–1200 mm
  • Motor voltage: 24 V and 48 V
  • IP ratings: IP66 dynamic and IP69K static

The LA76 is part of the IC Integrated Controller™ range, designed to integrate seamlessly with existing control systems. It offers a variety of industrial interfaces for smart and reliable movement.

You can choose the universal LINAK® I/O™ interface or select from a comprehensive range of communications protocols, including:

Fieldbus:

Industrial Ethernet:

Additionally, several of these options include Danfoss Plus+1® Compliance.

Learn more about actuators with IC – Integrated Controller™.

Got a question?

Our team is ready to assist you with technical information, starting a project and more.

Contact now

Product and communications options

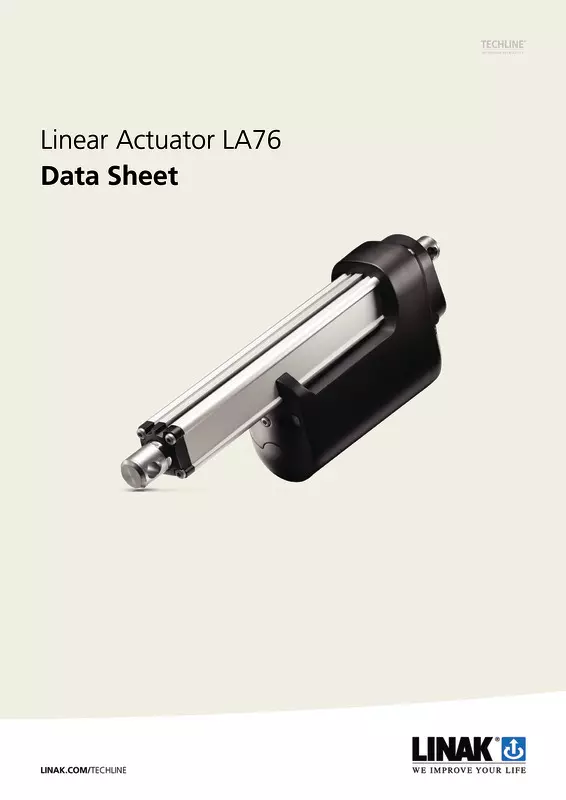

LA76 data sheet

View the data sheet as an online magazine or download the PDF.

Basic 2D drawing icon

2D Drawings

No 2D drawings available.
Please contact your local LINAK representative for more information.

3D model icon

3D Models

CAN SAE J1939®: A CAN DBC file (CAN database) is available for easier setup. It consists of a text file that contains information for decoding raw CAN bus data to 'physical values'.

CANopen® electronic datasheet (.eds file)

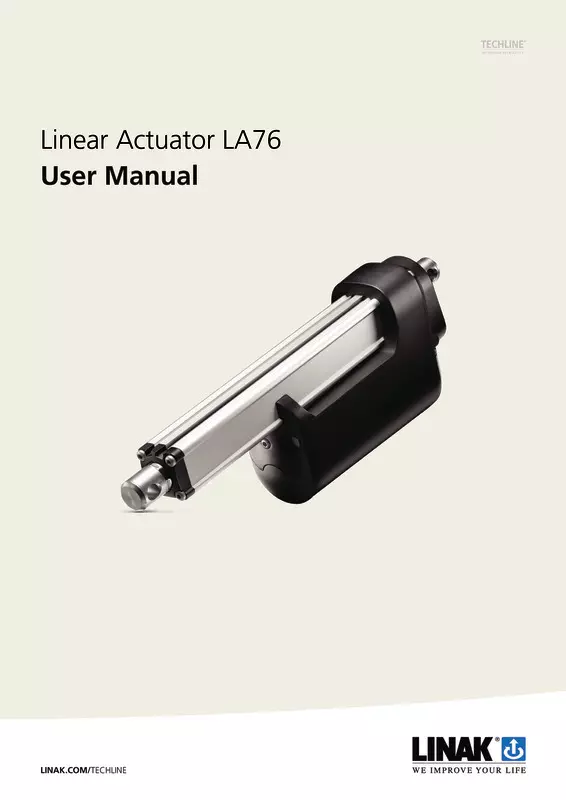

LA76 actuator user manual

This user manual will tell you how to install, use, and maintain your LINAK LA76 actuator.

I/O™ interface user manual

This manual guides you through installing and setting up your actuator with our I/O™ interface.

EtherNet/IP™ user manual

This manual guides you through installing and setting up your actuator with EtherNet/IP™.

IO-Link® user manual

This manual guides you through installing and setting up your actuator with IO-Link®.

Modbus® TCP/IP user manual

This manual guides you through installing and setting up your actuator with Modbus® TCP/IP.

Modbus® RTU user manual

This manual guides you through installing and setting up your actuator with Modbus® RTU.

CAN SAE J1939® user manual – version 1

This manual guides you through installing and setting up your actuator with CAN SAE J1939®.

CAN SAE J1939® user manual – version 3

This manual guides you through installing and setting up your actuator with CAN SAE J1939®.

CANopen® user manual

This manual guides you through installing and setting up your actuator with CANopen®.

I/O™ brochure

With the game-changing flexibility of a universal LINAK I/O interface, bringing innovative actuator ideas to life is simpler and more agile.
