DL20 IC

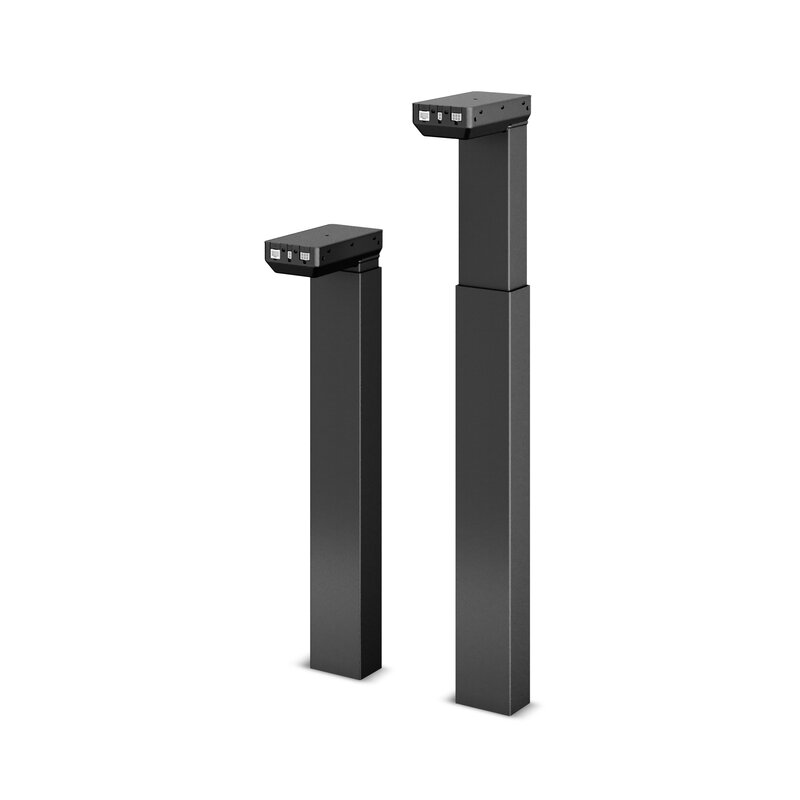

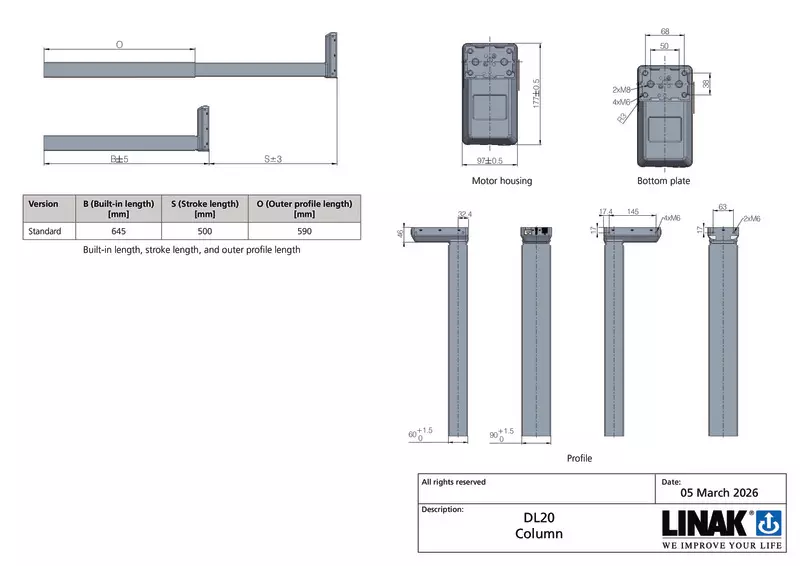

The DESKLIFT™ DL20 IC (Integrated Controller) is a compact two-part lifting column. The DL20 IC is a perfect choice for adjustable economy office desks using only two columns and requiring a stroke length of maximum 500 mm. The DL20 IC lifting column has the same outer dimensions as the three-part DL21 IC column.

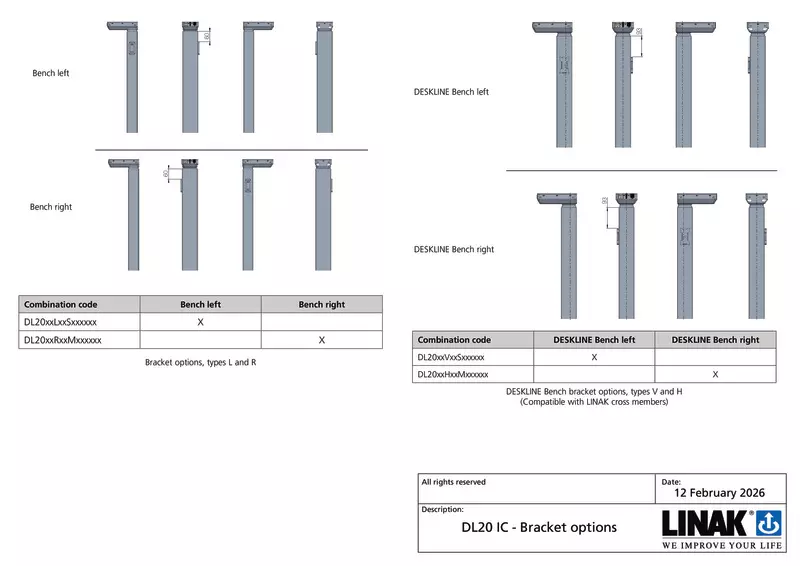

For bench desk solutions, the column is available with a bench bracket. The DL20 IC column is very sturdy, which is why a crossbar is not necessary, and the compact motor housing makes the column easy to integrate in various desk designs.

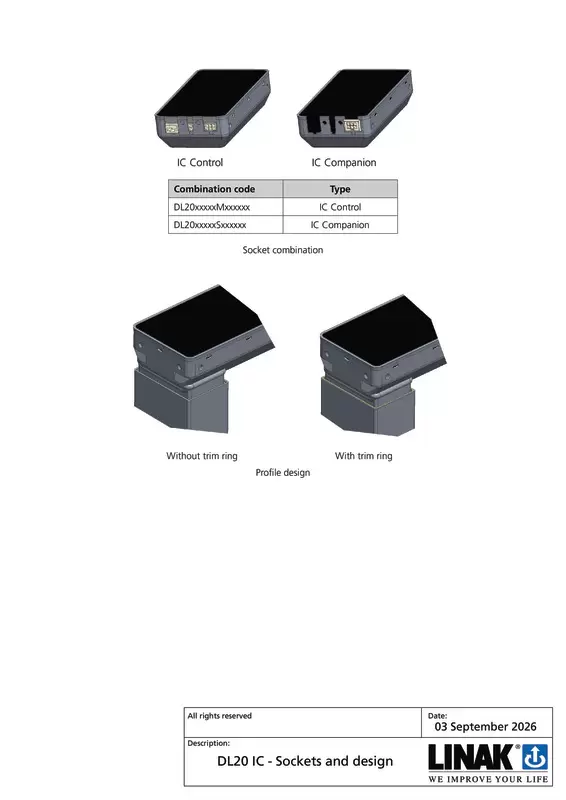

The DL20 IC is a PLUS™ column, ensuring a clean design without gliding pads. The column is available in three standard colours (black, grey and white) - and can optionally be delivered in other colours. Trim rings for optimised appearance are available in black, grey or white. An IC system consists of two columns, a master column and a follower column connected via a motor cable. The master column has a built-in control PCB; thus, no separate control box need to be mounted in the IC system.

The mains supply is an external SMPS (Switch Mode Power Supply) unit, and a variety of desk panels can be used for adjusting the desk. A Desk Sensor™ 1 anti-collision dongle can be added to the system to limit material damage to a desk or an object, in case of a collision while driving the desk.
