DL10 IC
Basic 2-part lifting column with a round profile. Being equipped with an integrated controller (IC), the DL10 IC is the perfect choice for adjustable economy office desks using only two columns. The compact motor housing is almost invisible in the tabletop construction and fits the Kick & Click™ top frame for easy mounting. Optional in the PLUS™ design, which ensures a clean column design.- Round Ø 70 mm
- 2-stage
- Integrated control
DL10 IC
The DESKLIFT™ DL10 IC (Integrated Controller) is a compact two-part lifting column with round profiles based on our DL10 column. The DL10 IC is a perfect choice for adjustable economy office desks using only two columns and requiring a stroke length of maximum 500 mm. The DL10 IC lifting column has the same outer profile dimension and mounting holes as the three-part DL11 IC column. Thus, they can be used in the same tabletop and table foot construction, including the Kick & Click™ top frame.
The DL10 IC column is available in three standard colours (black, grey and white) - and can optionally be delivered in other colours.

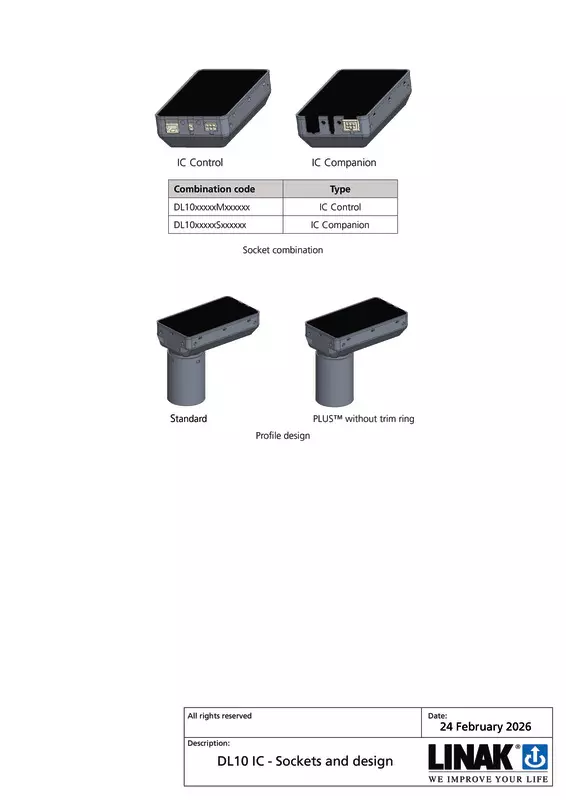

An IC system consists of two columns, a master column and a follower column connected via a motor cable. The master column has a built-in control PCB; thus, no separate control box must be mounted in an IC system. The mains supply is an external SMPS (Switch Mode Power Supply) unit, and a variety of desk panels can be used for adjusting the desk. A Desk Sensor™ 1 anti-collision dongle can be added to the system to limit material damage to a desk or an object in case a collision occurs during driving of the desk.
SMPS006
Accessories
A universal Switch Mode Power Supply designed for LINAK actuator solutions in leisure beds, recliners and basic office desks. It includes ZERO™ Technology, with <0.1W power consumption in standby mode.
- External power supply
- Universal unit
- 0.1 W standby power
DL15IC
Lifting columns
Basic electric column with low noise and integrated control allowing smooth adjustment of desks and tables. Optimal for parallel drives in desks or tables. This upside-down column is sturdy and requires no crossbar, leaving you with design freedom.
- Rectangular 43.5 x 73.5 mm
- 2-stage upside down design
- Integrated control
DL5IC
Lifting columns
Basic electric lifting column with integrated control in a 2-part column design. Compact motor housing makes it ideal for elegant economy office desks.
- Rectangular 50 x 80 mm
- 2-stage
- Integrated control
DL11IC
Lifting columns
Sturdy and compact 3-part lifting column with round profiles. With an integrated controller (IC), the DL11 IC is the perfect choice for adjustable economy office desks using two columns yet requiring the maximum adjustment range. Compact motor housing, which is almost invisible in the table top construction, and fits the Kick & Click top frame. Available in standard colours black, grey or white - and can optionally be delivered in other colours. DL11 IC is also available in a PLUS™ version, with invisible gliding pads for a clean design.
- Round Ø 70 mm
- 3-stage
- Integrated controller
DL20 IC
Lifting columns
Two-part lifting column with a sturdy 60 x-90 mm profile. With an integrated controller (IC), the DL20 IC is the perfect choice for adjustable economy office desks using only two columns and requiring a stroke length of maximum 500 mm. The compact motor housing is almost invisible in the tabletop construction and fits the Kick & Click™ top frame for easy mounting. The PLUS™ design ensures a clean column design.
- Rectangular 60 x 90 mm
- 2-stage
- Integrated controller
Desk Sensor 1
Accessories
LINAK Desk Sensor™ 1 (DS1) is an Anti-Collision™ solution that can limit material damage to a desk or an object if a collision occurs during driving of the desk. Detects tilting as well as both hard and soft obstacles. It comes as a small and compact plug-in unit and integrates easily with LINAK desk systems. Protects what matters.
- Anti-collision solution
- For all LINAK desk systems
- Reacts to soft and hard objects
DESKLIFT™ SetPack
DESKLIFT
Selected LINAK® lifting columns are available as a DESKLIFT™ SetPack solution. One box and includes everything you need to assemble your 2-leg desk.
- Set of 2 legs with accessories
- Stable cardboard box
- Fits Euro pallets
DL18 IC
Lifting columns
Standard 2-stage lifting column with integrated controller. This motor housing column comes with a sturdy square profile, and is designed to easily integrate into a variety of desk designs. The DL18 IC comes as a PLUS version, i.e. invisible gliding pads and an extra clean and smooth design.
- Square 70 x 70 mm
- 2-stage setup
- Integrated control
DL Feet
Accessories
A wide range of feet for lifting columns with rectangular, square, or round profiles. DL Feet are available for both T and C-shaped desk designs, in two lengths (560 or 710 mm) and three colours (black, grey and white). Choose between on-top or recessed mounting or the click-on version for a fast assembly. With the discreet and unobtrusive design, the DL Feet are also ideal for various full frames. Combine DL Feet with a Desk Frame 1 or a Desk Frame 2 to create a user-friendly, easy-to-assemble standing desk frame.
- For T and C desk designs
- Two lengths – three colours
- Mounting: On top, recessed or Click-on
SMPS001 and SMPS002
Accessories
SMPS001 and SMPS002 are power supplies (230V/120V) for electric actuator systems used for applications such as leisure beds, recliners and basic office desks. Includes ZERO™ Technology, with <0.1W power consumption in standby mode.
- External power supply
- 230 V and 120 V versions
- 0.1 W standby power
