Lifting columns

DL9

Long-stroke electric column for a wide range of adjustable office desks and TV / Monitor stands. Upside down construction enables compact and clean design. Sturdy, easy to mount, low-noise.

Product description

DL9

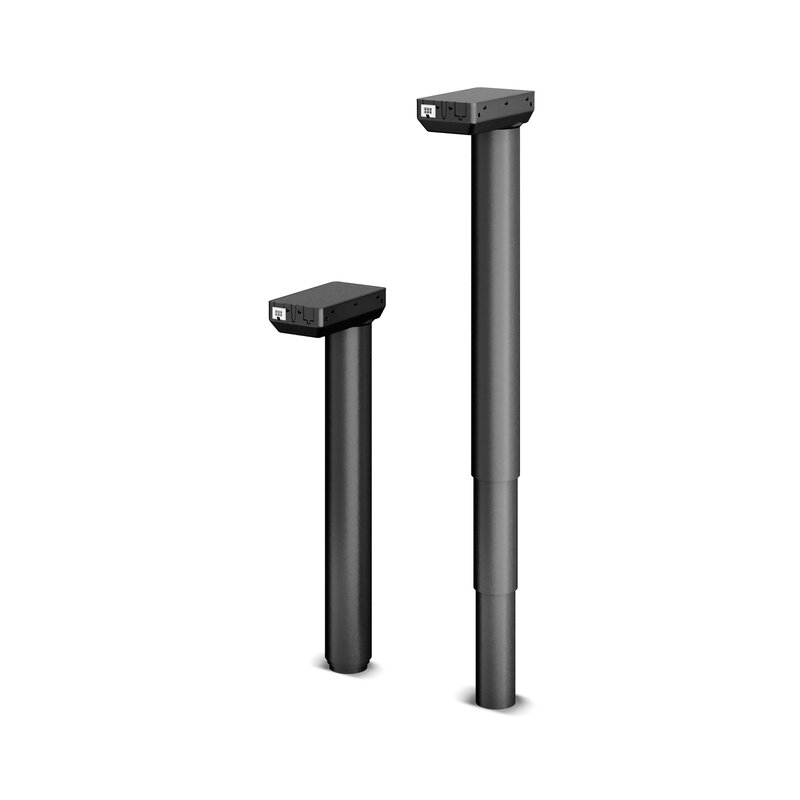

The DESKLINE column DL9 is a round 3-part column perfect for a wide range of office desks. The upside down construction gives a very compact and clean design, which also appears from the fact that the system is without a crossbar.

The 3-part construction ensures a short installation dimension combined with a long stroke length making the DL9 an ideal choice no matter what the height of the person using the desk is.

The DL9 has a compact motor housing, which is almost invisible in the tabletop construction. The DL9 is available in several standard colours to fit into a wide range of desk designs.

Optional PIEZO™ (collision protection) can be chosen. PIEZO minimises the risk for damages on a desk caused by collision with an obstacle.

The DL9 is compatible with the standard DESKLINE control box (CBD). No matter which box is preferred, they all ensure a very low and pleasant noise level and a wide range of options.

The DL9 is now also available in an extra long version called XL optimised for TV lift systems.

  • Max. thrust: 800 N
  • Max. speed: 38 mm/s

Product data sheet

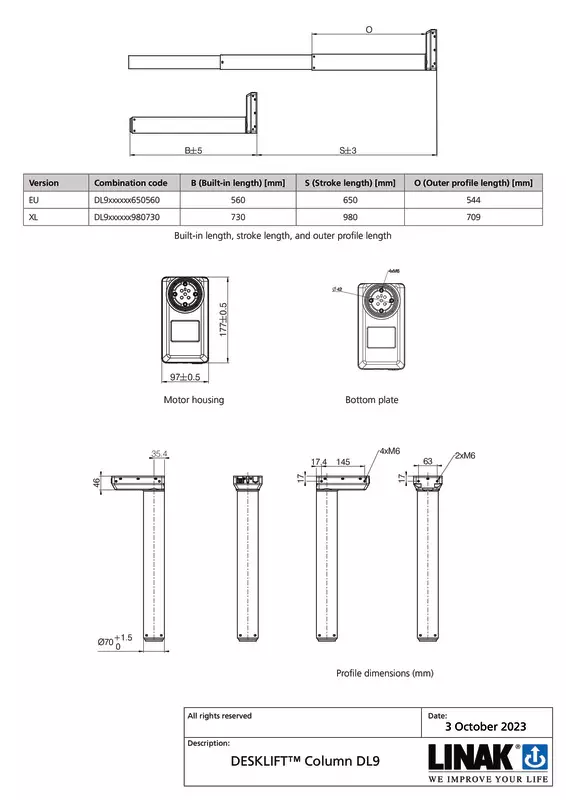

DL9 data sheet
