Lifting columns

DL16

Long-stroke and low-noise electric column intended for desks and tables without crossbar. Ideal for both larger desks and conference tables.

Product description

DL16

The DESKLIFT DL16 is a compact 3-part lifting column perfect for a wide range of different desk applications like office desks or conference desks.

The 3-part construction ensures a short installation dimension combined with a long stroke length, making the DL16 an optimum choice no matter what the height of the person using the desk is.

It is an upside down column, where the smallest profile is mounted on the foot construction. The DL16 is intended for desks without crossbar. This feature ensures an optimum freedom of design.
The DL16 is available in several standard colours to fit into a wide selection of desk designs.

Optional PIEZO™ (collision protection) can be chosen. PIEZO minimises the risk for material damages on a desk caused by collision with an obstacle.

The DL16 is compatible with the standard DESKLINE control box (CBD). No matter which box is preferred, they all ensure a very low and pleasant noise level and a wide range of options.

The DL16 is also available in an extended version called XL that is optimised for adjustment of display and monitor stands.

  • Max. thrust: 800 N
  • Max. speed: 38 mm/s

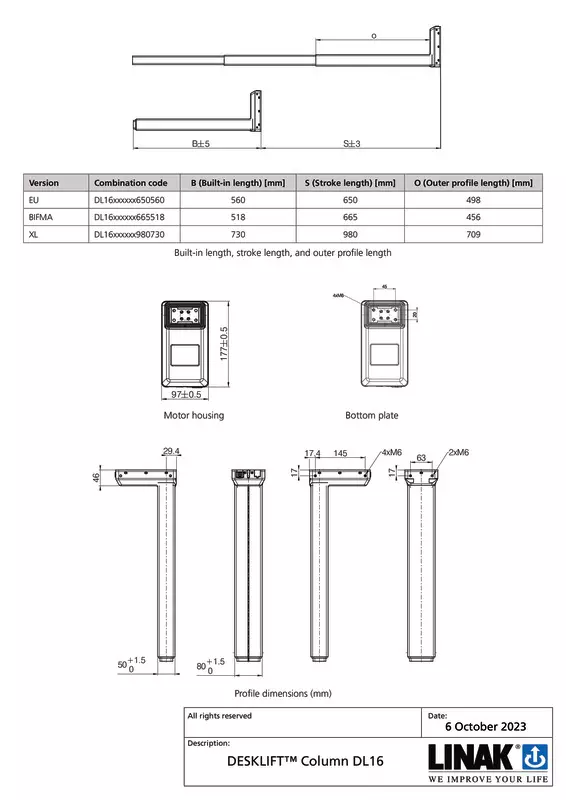

Product data sheet

DL16 data sheet

View the data sheet as an online magazine or download the PDF.

Brochures & manuals

DL15 DL16 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL15/DL16 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

Kick & Click brochure

The uniqueness of the Kick & Click solution is highlighted in this brochure.

Focus on office desks

Electric adjustment of office desks fits dynamic work styles and the new way of working.

Focus on display and monitor stands

Improve communication by adding electric movement to display and monitor stands - bringing your message at eye-level to the end-user.

DESKLINE product overview

If you make any kind of desk, table or counter that people work behind, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

PIEZO hardware based anti-collision technology

Ensure long lifetime for your desk with PIEZO - a hardware based anti-collision solution. Learn more about the situations where you appreciate the PIEZO feature.

DESKLINE quality matters

We use high quality components, state-of-the art production and the most demanding testing standards in the industry to achieve excellent quality.

The green criteria - PVC-free products

There are alternatives to materials containing PVC. Learn more about why we adapt to the new green criteria and offer PVC-free solutions

Have a question about electric actuator technology?

- We are not oracles. But, we are experts in actuator technology. So do not hesitate to ask us anything about that.
