Lifting columns

BL1

Compact and powerful (2,000 N push) 3-part lifting column with up to 400 mm stroke. Smooth design with exchangeable cable connection and optional integrated cable throughput.

Product description

BL1

The BL1 is a 3-part lifting column fit to use in for example hospital beds, nursing home beds, treatment chairs, couches and dental chairs.

The lifting column is compact and has a long stroke length. The 3-part guidance enables an overlap between the individual profiles, which ensures a high degree of stability.

The lifting column has an open spindle actuator with a chain drive inside which is practically noiseless.

The BL1 is available with a cable integrated inside the column which enables connection of a hand control or a foot switch from the top or bottom of the column.

Hereby the cables are hidden inside the column. It is possible to connect the control unit and motor cable at the top plate but only motor cable or control unit at the bottom plate.

The integrated cable makes the column easy to fit into an aesthetic design of applications and easy to clean.

Among benefits are:

  • Short installation dimension and long stroke length is possible
  • High degree of stability
  • Low noise level
  • Exchangeable cables
  • Max. thrust: 2,000 N
  • Max. speed: 18 mm/s

Product data sheet

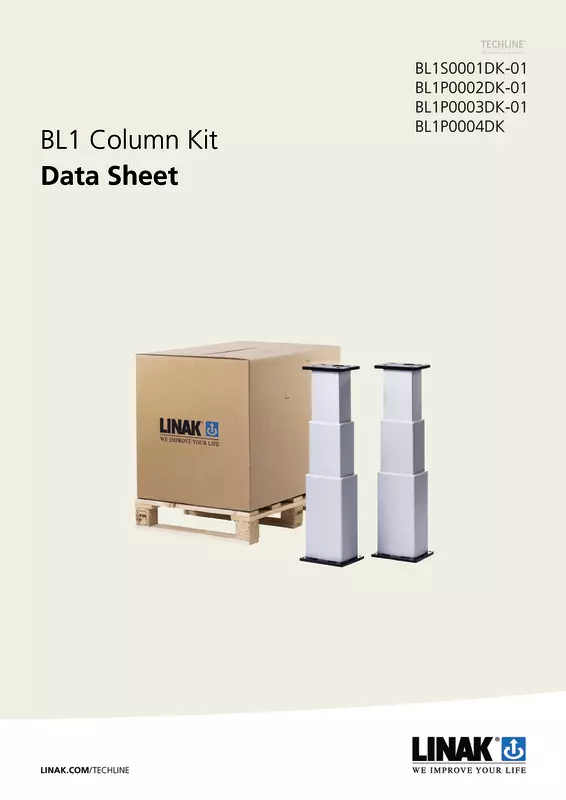

BL1 data sheet

View the data sheet as an online magazine or download the PDF.
