DPB: Intuitive desk panel for electric columns in adjustable desks
Controls

DPB

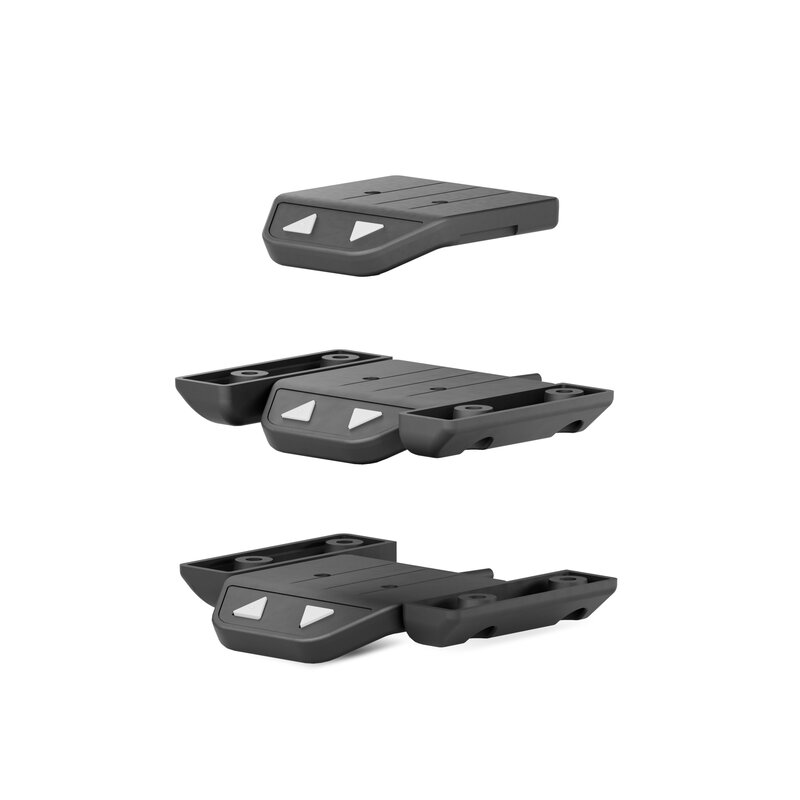

The DPB is a very user-friendly desk panel for adjusting lifting columns. Ideal for adjustable desks and workstations. Easy to mount and comes with soft arrow-shaped rubber buttons.

Product description

DPB

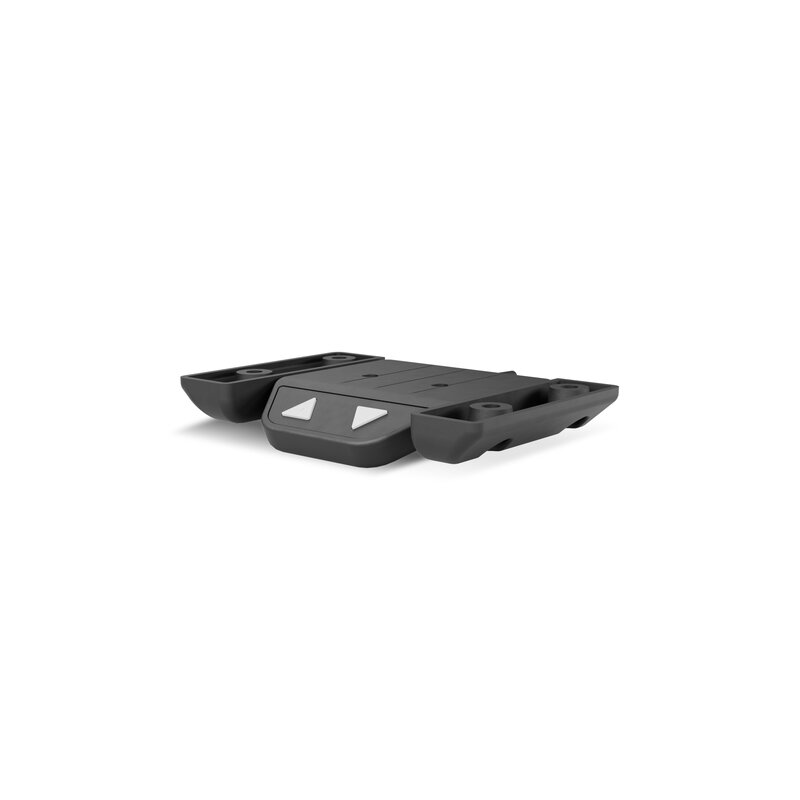

The compact design and mounting friendliness of the DPB makes it an optimum choice of desk panel for height adjustable desks where only up and down functions are required.

The raised up and down buttons shaped as arrowheads make the panel very intuitive to use.

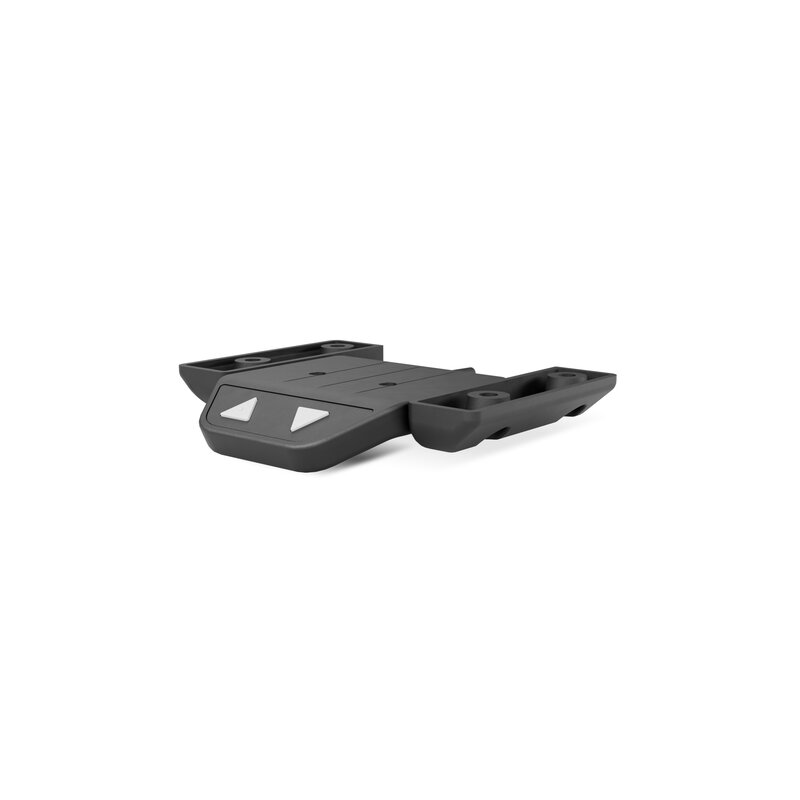

The panel is compatible with all DESKLINE® control boxes. As an option, the DPB can be mounted in a drawer, so when not in use the panel can be hidden under the desk to blend perfectly with the desk design.

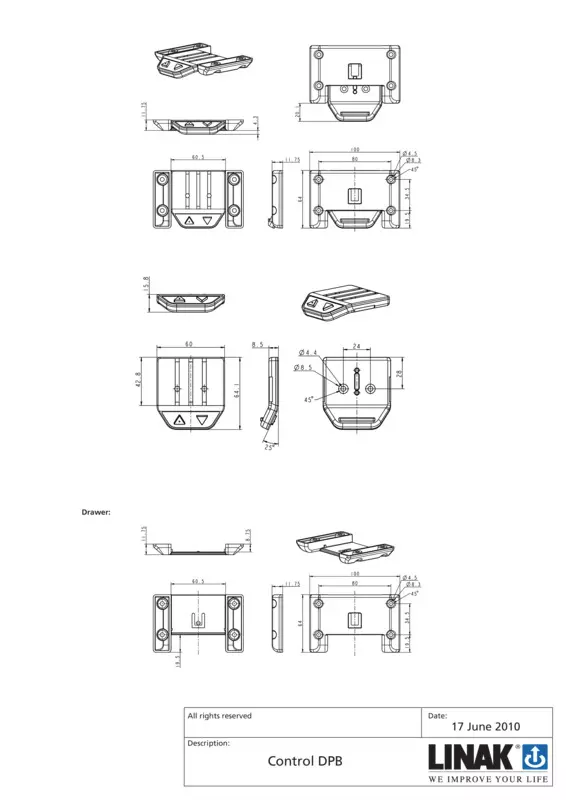

Product data sheet

DPB data sheet

View the data sheet as an online magazine or download the PDF.

DB5 DB6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL1A system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL2 and CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL2 and CBD4 CBD5 CBD6 systems user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL2 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL4S system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL5/DL6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL7 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL8, DL9, DL10, and DL11 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL8, DL9, DL10 and DL11 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL12, DL14, DB14, DL17 system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL12, DL14, DB14, DL17 system with CBD4, CBD5 or CBD6 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL15/DL16 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL15 DL16 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

Controls and handsets user manuals

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

Focus on office desks

Electric adjustment of office desks fits dynamic work styles and the new way of working.

DESKLINE product overview

If you make any kind of desk, table or counter that people work behind, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

DESKLINE quality matters

We use high quality components, state-of-the art production and the most demanding testing standards in the industry to achieve excellent quality.

The green criteria - PVC-free products

There are alternatives to materials containing PVC. Learn more about why we adapt to the new green criteria and offer PVC-free solutions

Support

All desk panels – How to initialise your desk

The desk cannot be raised if it has not been initialised.

If error code 'E01' is shown in the display, the desk must be initialised.

How to initialise your desk:

  1. Press the down key until the desk is lowered completely. Hold the key until the desk no longer moves.
  2. Reactivate the down key and hold until the desk no longer moves.

Now the desk can be raised.

Desk Panel DPF - The display shows ‘E01’ error code instead of the height

The desk cannot be raised if it has not been initialised.

If the display shows error code 'E01', the desk has not been initialised.

How to initialise your desk:

  1. Press the down key until the desk is lowered completely. Hold the key until the desk no longer moves.
  2. Reactivate the down key and hold until the desk no longer moves. Now the desk can be raised.

Desk Panel DPF1C – How to set the correct desk height

Change the height in the display to the correct height of the desk by following the procedure shown in the video or the instructions below.

How to set the height of your desk

Measure the height of your desk from floor to the upper edge of the desktop.

Set the height of your desk

  1. Press the up and down keys at the same time.
  2. A figure should appear in the display.
  3. Use the up or down key to change the figure to the correct height.

Desk Panel DPT - The display only shows a dash (-) and does not work

The DPT is locked when not used to avoid unintended movement.

To unlock the DPT follow the procedure shown in the video.

Desk Panel DPT - The display shows ‘E01’ error code instead of the height

The desk cannot be raised if it has not been initialised.

If the display shows error code 'E01', the desk has not been initialised.

How to initialise your desk:

  1. Press the down key until the desk is lowered completely. Hold the key until the desk no longer moves.
  2. Reactivate the down key and hold until the desk no longer moves. Now the desk can be raised.

Desk Panels DP1C and DPT – How to set the correct desk height

Change the height in the display to the correct height of the desk by following the procedure shown in the video or described below.

How to set the height of your desk (DP1C and DPT)

Measure the height of your desk from floor to the upper edge of the desktop.

  1. Press and hold the ‘S’ button until an ‘S’ appears in the display.
  2. While pushing the ‘S’ button, use the up and down key to change the figure to the correct height.

Desk Panels DPF, DP1C and DPT – How to store a memory position

Favourite positions for sitting and/or standing can be stored. Follow the procedure shown in the video or the instructions below.

How to store a position

  1. Set the desk to the height you wish to store
  2. Press ‘S’ and then the memory button.

The position has now been stored.

To move your desk to the stored height, press the memory button until it reaches the stored position.

The desk cannot be raised full stroke. Always stops in same position.

The system has set a new end-stop outwards.

To reset a saved position, the desk must be re-initialised. Follow the procedure shown in the video.
