Controls

DPF

The DPF is an elegant and compact desk panel for adjustable desks, tables and kitchens. Come with soft buttons intuitively placed and can control up to 3 references.

Product description

DPF

The DPF desk panel is a perfect choice for a wide range of desks and workstations with a demand for either just up and down drive or up, down and memory.

The hallmark of the DPF desk panel series is the modern design, which combines classic looks with intuitive, practical use.

The up and down buttons have been made extra “user-friendly” as they are shaped “according to the function”, meaning the user can feel the differences and it is not necessary to look when operating the system.

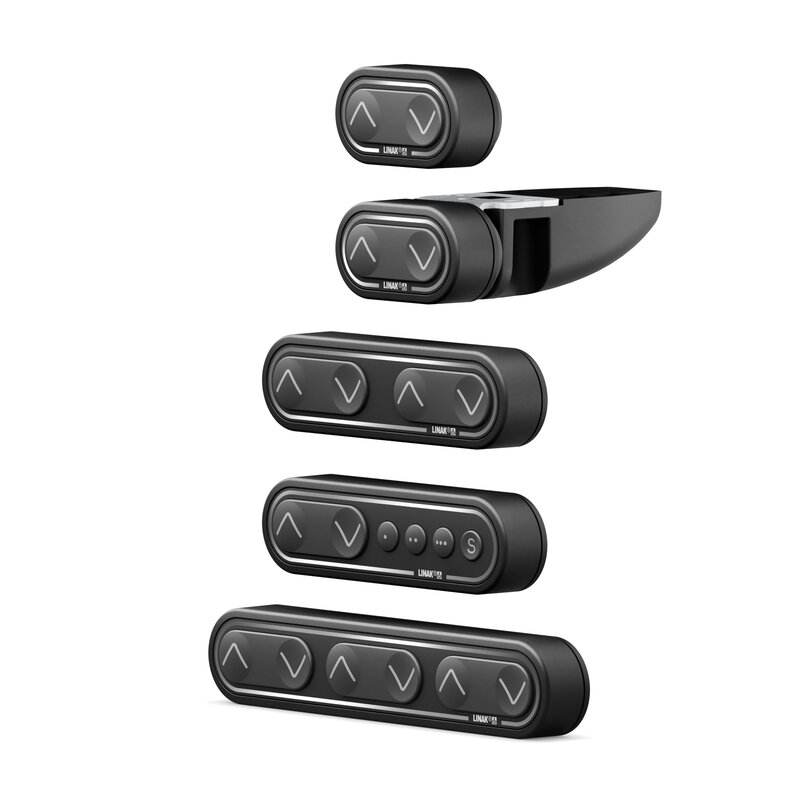

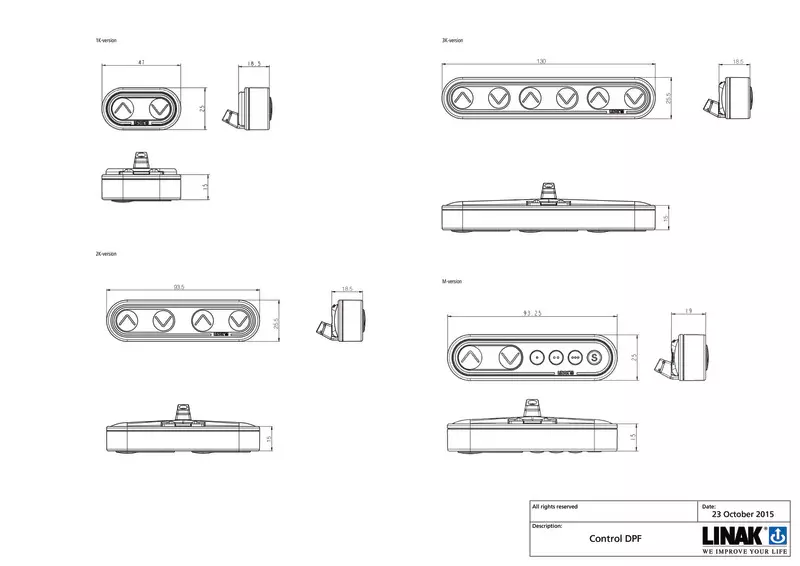

The DPF is available in a small and compact up/down or with 2 or 3 references or in a M-version which also features memory for storing your favourite positions.

Product data sheet

DPF data sheet

View the data sheet as an online magazine or download the PDF.

Brochures & manuals

DB5 DB6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL1 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL1A system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL2 and CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL2 and CBD4 CBD5 CBD6 systems user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL2 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL4S system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL5/DL6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL7 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL8, DL9, DL10, and DL11 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL8, DL9, DL10 and DL11 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL12, DL14, DB14, DL17 system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL12, DL14, DB14, DL17 system with CBD4, CBD5 or CBD6 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL15 DL16 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DL15/DL16 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

Controls and handsets user manuals

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

Focus on kitchens

Take your kitchen to the next level. Only your imagination set limits to how electric movement can improve tomorrow’s kitchen.

Focus on shop interiors

Propelled by LINAK electric actuators, height adjustable counters allow all members of the staff to pick a position that is right for them, anytime of the day, whatever the task.

Production ergonomics

Improved ergonomics helps lessen muscle fatigue and musculoskeletal disorders

DESKLINE product overview

If you make any kind of desk, table or counter that people work behind, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

DESKLINE quality matters

We use high quality components, state-of-the art production and the most demanding testing standards in the industry to achieve excellent quality.

The green criteria - PVC-free products

There are alternatives to materials containing PVC. Learn more about why we adapt to the new green criteria and offer PVC-free solutions

Baselift: ergonomics meets innovation

Baselift is a compact unit used for height adjustment of kitchens, cabinets and counters.

Support

How to initialise your desk

The desk cannot drive up if it has not been initialised.

If display: error code E01, the desk must be initialised.

How to initialise:

  1. Press down key and drive to the lowest position. Hold the key until the desk stops completely.
  2. Reactivate the down key and hold the key until the desk stops completely.

Now the desk can drive up.

How to store a memory position

Favourite positions for sitting and/or standing can be stored. Follow the procedure shown in the video or the instructions below.

How to store a position

  1. Drive to the height you wish to store
  2. Press ‘S’ and then the memory button

Your position has now been stored.

To recall your memory position, press the memory button until you reach the stored position.

The desk can only drive downwards

The desk must be initialised.

Follow the procedure shown in the video.

The desk does not drive at all

Check: Is the mains connected to the control box?
Try/Solution: Try to connect a lamp or similar to the mains supply to check that the supply voltage is OK.

Check: Are all plugs mounted correctly in the control box and to the leg?
Try/Solution: Check all connections.

Check: Are there any visible damages on cables, controls, the control box or legs?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the desk.

Desk can not be raised full stroke. Always stops in same position

The system has set a new end-stop outwards.

To erase this position, the desk must be initialised again. Follow the procedure shown in the video.
