LS and LSD

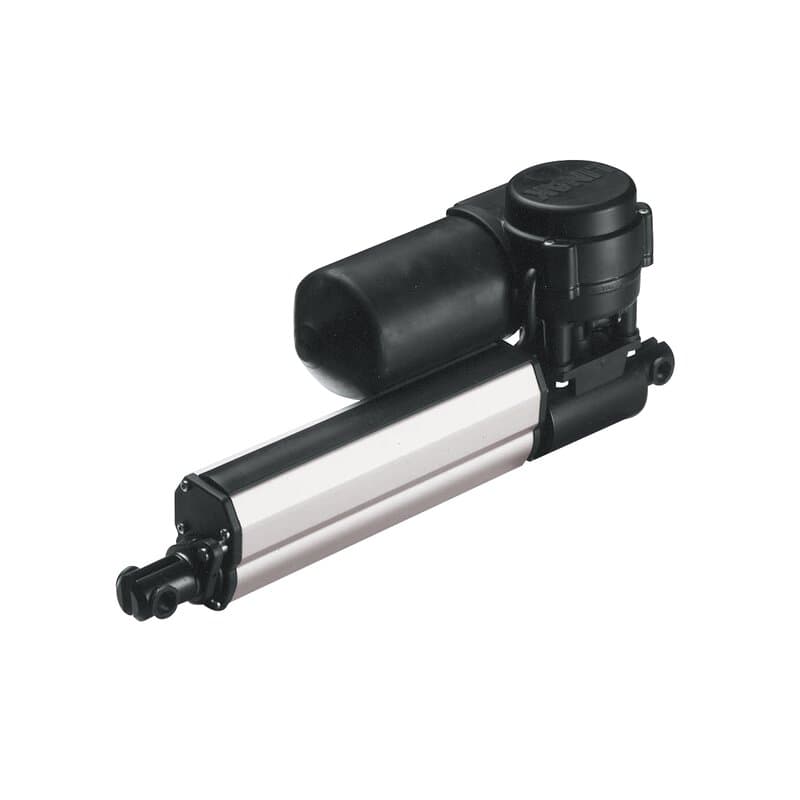

LS and LSD are limit switches for LINAK linear actuators. LSD controls stroke length. LS yields a signal in two fixed end positions. LS/LSD comes in weather resistant design.

LS and LSD

There are two types of LINAK^® limit switches, for actuators type LA22, LA30, LA30S, LS and LSD.

The LSD type controls the stroke length of the actuator between two fixed end positions by cutting off the current to the motor.

The LS type yields a signal in two fixed end positions, but requires a control unit to stop the actuator when the micro switches are activated.

Got a question?

Our team is ready to assist you with technical information, starting a project and more.

Contact now

LS and LSD data sheet

View the data sheet as an online magazine or download the PDF.

View

2D Drawings

LS and LSD

3D Models

No 3D drawings available.
Please contact your local LINAK representative for more information.

Linear actuators and electronics user manual

This user manual will tell you how to install, use and maintain your LINAK electronics. We are sure that your LINAK system will give you many years of problem-free operation.

View

Safety folder

Different applications need different safety features. Regardless of what healthcare application you are designing, LINAK offers a wide variety of standard and optional safety features.
