Desk Frame 4
Desk Frame 4 (DF4) is a sleek 4‑leg height‑adjustable frame designed for modern furniture setups. With four elegant Ø63.5 mm upside‑down lifting columns and a slim 30 mm top frame, it delivers a clean and minimalistic appearance suitable for a wide range of workspaces. The control unit is fully integrated into the frame, allowing a seamless appearance with no need for tabletop cutouts. Integrated cable clips keep cables neatly organised. DF4 is available in two frame sizes: 1600 x 800 mm or 1800 x 900 mm and comes in classic white or black. Set packed for easy handling.- 4-legged frame
- Clean, sleek design
- Setpacked
Desk Frame 4

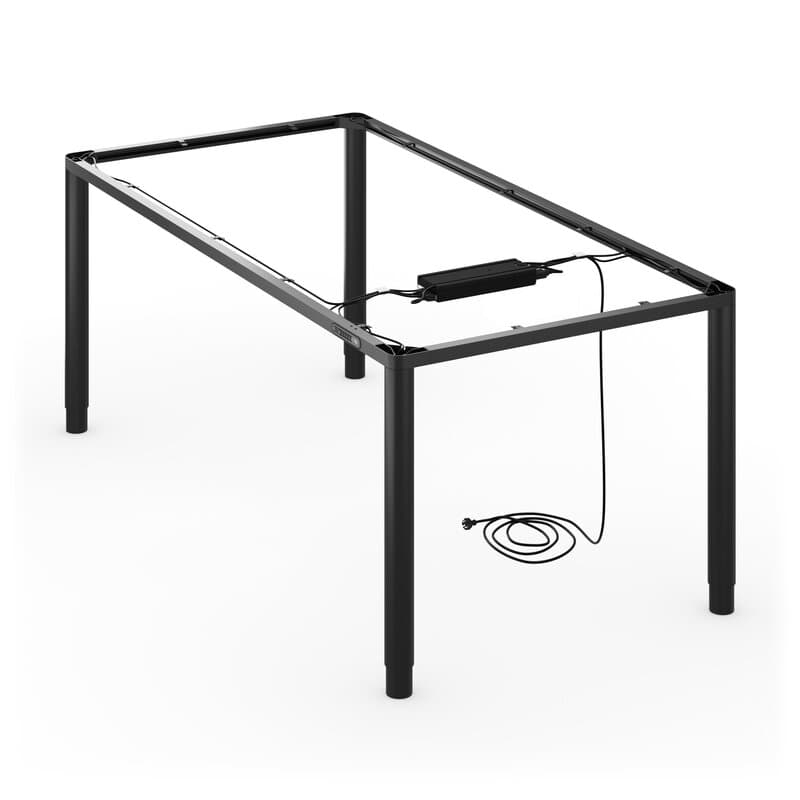

The Desk Frame 4 (DF4) is an elegant frame solution designed to create modern 4-legged height-adjustable tables that fit into any home and professional office. The DF4 features four round lifting column legs (Ø63.5 mm) in an upside-down configuration, ensuring a sleek appearance. The compact 30 mm top frame delivers a light look while providing full structural stability.
The control unit is fully integrated into the frame, eliminating the need for tabletop cutouts or under-table drilling.
Integrated cable clips, which also function as fixtures for the tabletop, ensure easy cable management to keep workspaces organized and easy to maintain.
The DF4 features:

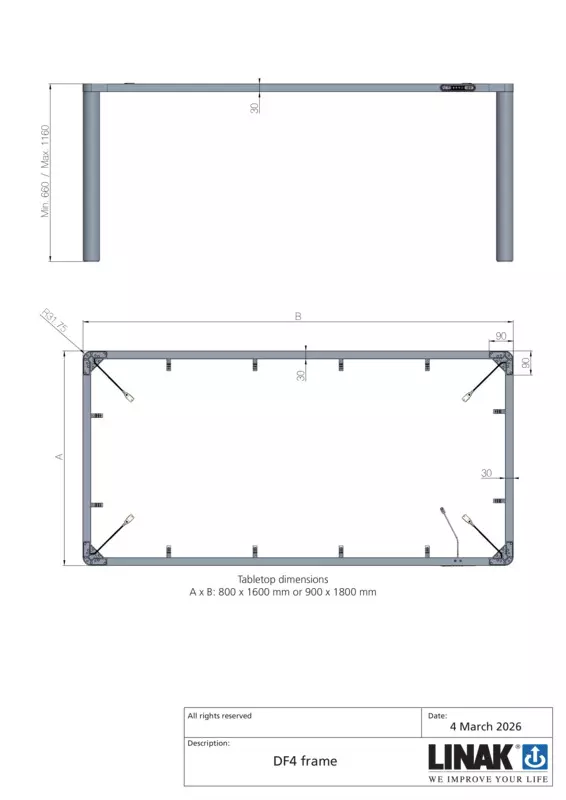

- two frame sizes: 800 x 1600 mm and 900 x 1800 mm
- two colours: black and white
- speed: 38 mm/s
- load: maximum 2000 N on the frame (maximum 500 N per column)
- height adjustment: from 660 to 1160 mm
The DF4 is delivered as a set kit enabling efficient logistics and easy handling.
The DF4 is equipped with our standard Control Box CBD6S, which features ZERO™ ensuring that the system uses less than 0.1 W in standby mode.
BA001
Accessories
LINAK BA001 is a high-performance 2.15 Ah battery solution for electric actuator systems. Ideal for mobile carts, recliners or TV / monitor stands. Come with LED status indicator and audio alarm.
- Battery for mobile applications
- Small and compact unit
- Up to 225 cycles per charging
CBD6S
Control boxes
Lightweight and slim control box. Plug and Play™ with all DESKLINE lifting columns (standard, EXPERIENCE™, and XL), desk panels, and anti-collision solutions. CBD6S is available as 200 W (2-channel) or universal 300 W (2, 3, or 4-channel). Both are PVC-free, use ZERO™ technology for low standby power (<0.1W), have cable grooves for easy cable management, are only 38 mm high, have low-noise performance, and have a soft start-stop for smooth movement. Optional, the 300 W is available in a version compliant with IT AV standard EN 62368.
- Slim, lightweight, and intelligent
- Plug and play
- 0.1 W standby power
Desk Frame 5
Desk frame
Discover Desk Frame 5 (DF5), a robust and sturdy top frame designed for modern office desks. Its adjustable tube design fits tabletops from 1200 mm to 1800 mm and beyond and is compatible with both 2-legged and bench desks. Integrated rubber dampers help reduce sound and vibration between the tabletop and frame. DF5 works with all LINAK motor-housing columns (EXPERIENCE™, Standard, and IC) in various designs. Standard colours are white, grey, or black. Complete your full-frame setup with DL Feet - just Plug and Play™!
- 2-legged T-desks or bench
- Fits all motor housing columns
- Simple screw assembly
Desk Frame 2
Desk frame
The intuitive Desk Frame 2 (DF2) is a fast way to create a high-quality 2-leg sit-stand desk. Compared to a typical frame, the DF2 frame parts have been rethought, redesigned, and integrated in an optimised way, leading to fewer parts, improved cable management, and intuitive assembly. All without compromising on performance, quality, or design. As standard, DF2 features a telescopic beam (1150-1750 mm), built-in anti-collision, soft start-stop, 0.1 W standby power, and a powerful motor with up to 1600 N lifting capacity. Select a desk panel and you are ready to go.
- Telescopic all-in-one beam
- Pre-configured control box
- Intuitive Click-On assembly
Desk Frame 1
Desk frame
Desk Frame 1 (DF1) is the flexible and customisable full-frame concept for any sit-stand desk: 2-leg, 3-leg, and bench. DF1 offers countless combinations of top frames, motor-housing lifting columns (standard or high-speed), feet, desk panels, and a wide range of value-adding accessories, such as Anti-collision, Desk Tracking, USB charger, and battery. Standard colours are white, grey, or black – but any RAL Classic Colour is possible. As standard, DF1 features soft start-stop, 0.1 W standby power, and up to 1600 N lifting capacity. Easy “Kick & Click” assembly – just Plug & Play.
- Countless combinations
- Wide range of accessories
- Kick & Click™ assembly
Desk Frame 3
Desk frame
Discover the Desk Frame 3 (DF3), a lightweight, energy-efficient, full-frame for the contract market. The DF3 is built around a lightweight telescopic beam that contains the motor and the electronics and features integrated cable management. Available in various 2-legged configurations, the DF3 ranges from simple frames to those equipped with Internal Desk Sensor (IDS) anti-collision technology. Standard features include soft start-stop, 0.1 W standby power consumption, and a 1600N lifting capacity. Various feet and desk panels to complete your setup. Just plug and play!
- Telescopic all-in-one beam
- Light-weight design
- Quick assembly
DPF with display
Desk panel
The DPF with display is a series of modern control panels. It features intuitively placed soft buttons, optional favourite sit/stand positions, and the ability to toggle between four references. It is available in black or white, with customization options available through the front foil and multiple mounting configurations (separate brackets). For advanced solutions, select the DPF1C and DPF1D variants, with built-in anti-collision sensors to minimize collision risks during operation. Additionally, the series is available in a basic version without a display.
- Modern control with display
- Various versions
- Optional: built-in anti-collision sensor
