Desk Frame 3
Discover the Desk Frame 3 (DF3), a lightweight, energy-efficient, full-frame for the contract market. The DF3 is built around a lightweight telescopic beam that contains the motor and the electronics and features integrated cable management. Available in various 2-legged configurations, the DF3 ranges from simple frames to those equipped with Internal Desk Sensor (IDS) anti-collision technology. Standard features include soft start-stop, 0.1 W standby power consumption, and a 1600N lifting capacity. Various feet and desk panels to complete your setup. Just plug and play!- Telescopic all-in-one beam
- Light-weight design
- Quick assembly
Desk Frame 3

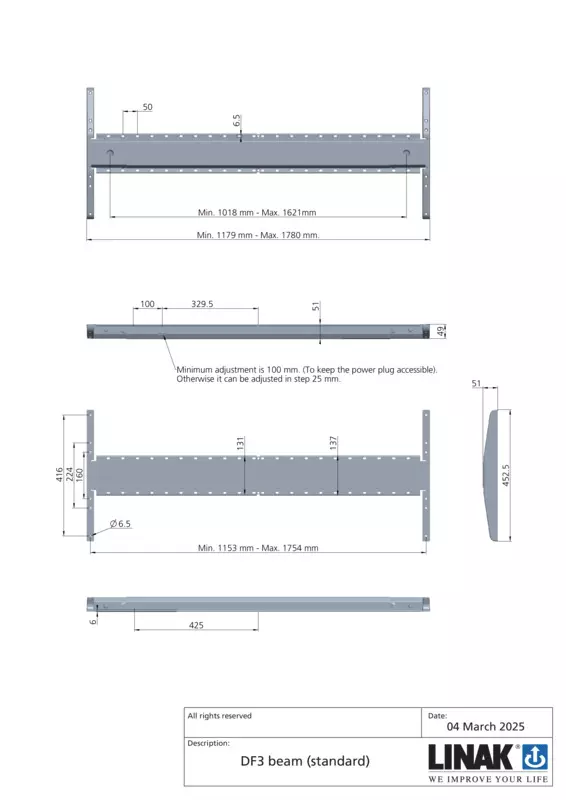

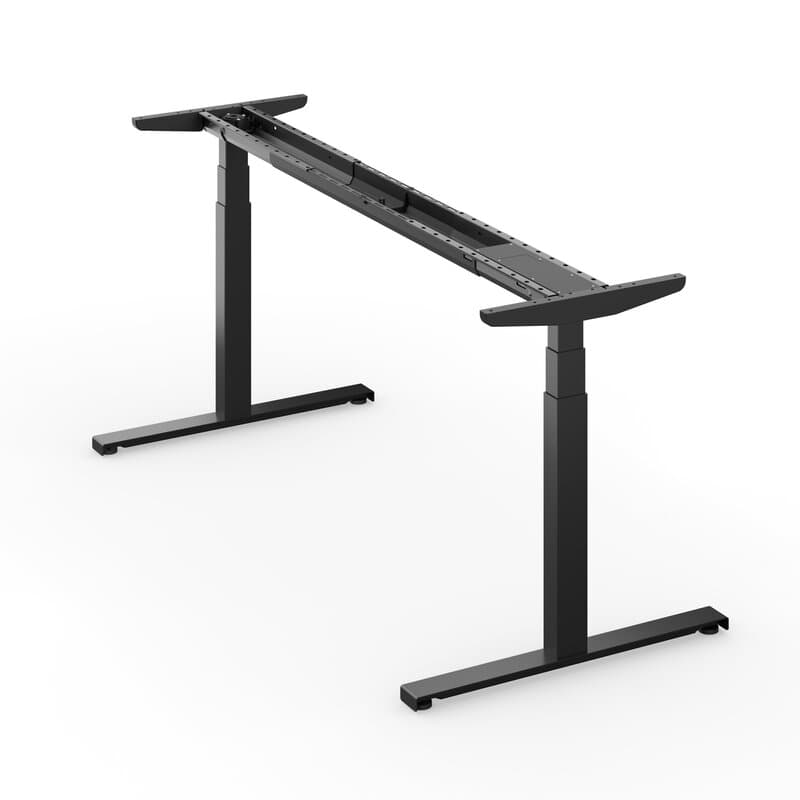

The Desk Frame 3 (DF3) is a complete 2-legged frame from LINAK® developed with focus on simple and intuitive assembly. It is evolved around a top frame called the beam. The beam contains all electronics including the motor and all cable wiring.
The DF3 frame is available in various 2-legged frame configurations from simple frames to frames featuring the Internal Desk Sensor (IDS), an anti-collision technology which ensures that collisions with obstacles do not damage the furniture, as well as the possibility to connect desk panels with display and memory.
The lifting columns have no visible gliding pads and no punch holes in the profiles and are available in various designs and as two-part or three-part columns.
Downloads
DPG
Desk panel
The DPG1K is a LINAK desk panel for office desks. Intuitive to operate with tilt function and fits to modern desk design
- Simple control
- Up/down
- Intuitive adjustment
DPA
Desk panel
The DPA is an easy-to-use desk panel for adjusting lifting columns in adjustable workstations or office desks. Simple, durable, and made to match almost any desk design.
- Simple control
- Up/down
- Adjustable front
DPF
Desk panel
The DPF is a modern, compact control panel, available in various models designed to meet a wide range of applications. It features intuitively positioned soft buttons, multi-referential options, and favourite sit/stand positions. The DPF1K includes a version with a built-in anti-collision sensor, minimising collision risks during operation. As standard, the DPF is available in black or white, but the front foil is customisable to match your design. Multiple mounting options, including separate brackets, provide flexibility during installation. For advanced control, explore the series: DPF with display.
- Modern & compact control
- Various versions
- Optional: built-in anti-collision sensor
DPB
Desk panel
The DPB is a very user-friendly desk panel for adjusting lifting columns. Ideal for adjustable desks and workstations. Easy to mount and comes with soft arrow-shaped rubber buttons.
- Simple control
- Up/down
- Drawer for hiding the DPB
Desk Frame 2
Desk frame
The intuitive Desk Frame 2 (DF2) is a fast way to create a high-quality 2-leg sit-stand desk. Compared to a typical frame, the DF2 frame parts have been rethought, redesigned, and integrated in an optimised way, leading to fewer parts, improved cable management, and intuitive assembly. All without compromising on performance, quality, or design. As standard, DF2 features a telescopic beam (1150-1750 mm), built-in anti-collision, soft start-stop, 0.1 W standby power, and a powerful motor with up to 1600 N lifting capacity. Select a desk panel and you are ready to go.
- Telescopic all-in-one beam
- Pre-configured control box
- Intuitive Click-On assembly
Desk Frame 1
Desk frame
Desk Frame 1 (DF1) is the flexible and customisable full-frame concept for any sit-stand desk: 2-leg, 3-leg, and bench. DF1 offers countless combinations of top frames, motor-housing lifting columns (standard or high-speed), feet, desk panels, and a wide range of value-adding accessories, such as Anti-collision, Desk Tracking, USB charger, and battery. Standard colours are white, grey, or black – but any RAL Classic Colour is possible. As standard, DF1 features soft start-stop, 0.1 W standby power, and up to 1600 N lifting capacity. Easy “Kick & Click” assembly – just Plug & Play.
- Countless combinations
- Wide range of accessories
- Kick & Click™ assembly
DL Feet
Accessories
A wide range of feet for lifting columns with rectangular, square, or round profiles. DL Feet are available for both T and C-shaped desk designs, in two lengths (560 or 710 mm) and three colours (black, grey and white). Choose between on-top or recessed mounting or the click-on version for a fast assembly. With the discreet and unobtrusive design, the DL Feet are also ideal for various full frames. Combine DL Feet with a Desk Frame 1 or a Desk Frame 2 to create a user-friendly, easy-to-assemble standing desk frame.
- For T and C desk designs
- Two lengths – three colours
- Mounting: On top, recessed or Click-on
