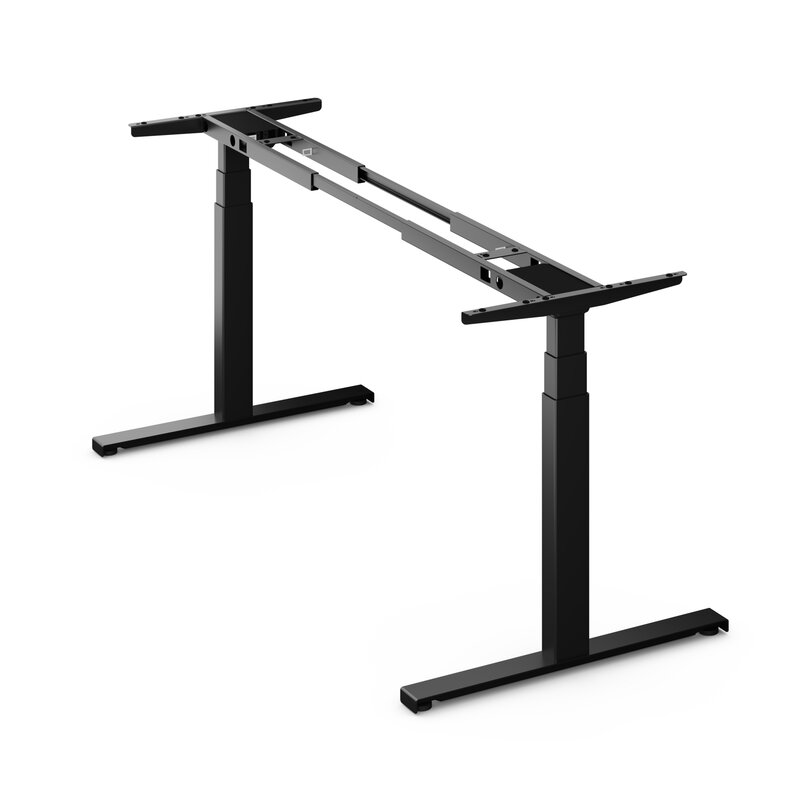

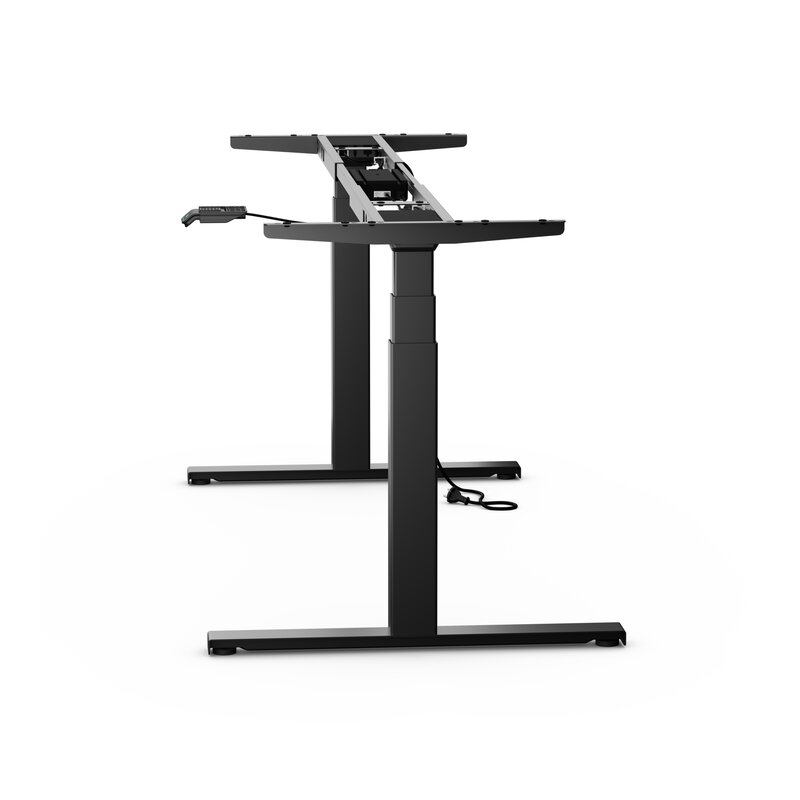

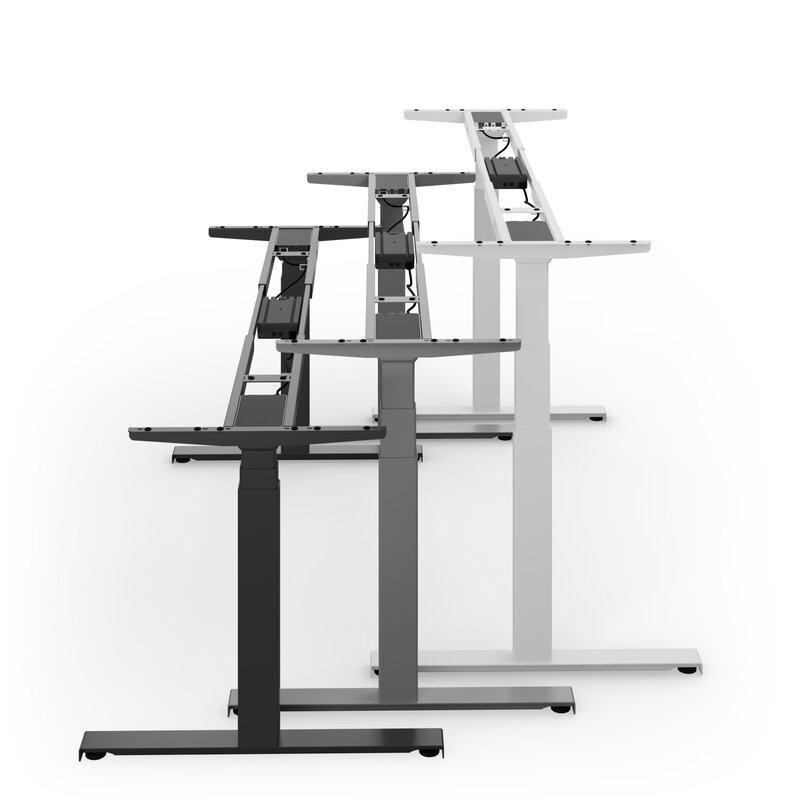

Desk Frame 5
Discover Desk Frame 5 (DF5), a robust and sturdy top frame designed for modern office desks. Its adjustable tube design fits tabletops from 1200 mm to 1800 mm and beyond and is compatible with both 2-legged and bench desks. Integrated rubber dampers help reduce sound and vibration between the tabletop and frame. DF5 works with all LINAK motor-housing columns (EXPERIENCE™, Standard, and IC) in various designs. Standard colours are white, grey, or black. Complete your full-frame setup with DL Feet - just Plug and Play™!- 2-legged T-desks or bench
- Fits all motor housing columns
- Simple screw assembly
Desk Frame 5
The Desk Frame 5 (DF5) offers a sturdy and robust solution for mounting DESKLIFT™ motor-housing systems, including EXPERIENCE™ systems, to your tabletop. Designed in a T-desk style, the DF5 is ideal for constructing both 2-legged frame solutions and bench setups.
The wide range of motor-housing columns allows desk manufacturers to design diverse desks based on the same top frame. The adjustable DF5 accommodates tabletops ranging from 1200 mm to 1800 mm, making it versatile for various office environments.
Assembly is straightforward, requiring only a few screws. Premounted rubber dampers help isolate vibrations between the tabletop and frame. Easily integrate columns, feet, power supplies, and controls to create a complete desk with our simple Plug & Play™ system.
Videos
DL21
Lifting columns
A very sturdy three-stage lifting column with a 60 x 90 mm profile dimension. The long stroke length and short built-in dimension make the column perfect for desks for people of any height. The PLUS™ design ensures a clean column design without any visible gliding pads. Optionally, the DL21 is available as high-speed (60 or 80 mm/s); with PIEZO anti-collision; bench bracket; and/or trim rings for optimised appearance.
- Rectangular 60 x 90 mm
- 3-stage
- Motor housing
CBD6S
Control boxes
Lightweight and slim control box. Plug and Play™ with all DESKLINE lifting columns (standard, EXPERIENCE™, and XL), desk panels, and anti-collision solutions. CBD6S is available as 200 W (2-channel) or universal 300 W (2, 3, or 4-channel). Both are PVC-free, use ZERO™ technology for low standby power (<0.1W), have cable grooves for easy cable management, are only 38 mm high, have low-noise performance, and have a soft start-stop for smooth movement. Optional, the 300 W is available in a version compliant with IT AV standard EN 62368.
- Slim, lightweight, and intelligent
- Plug and play
- 0.1 W standby power
DL6 EXPERIENCE
Lifting columns
Introducing EXPERIENCE™, the new generation of electric lifting columns engineered for superior performance: fast 80 mm/s speed, 800 N load capacity, and 1200 N self-locking capacity per column as standard. EXPERIENCE is designed to last - tested for 25,000 cycles and backed by a 10-year warranty. The system is both PFAS and PVC-free, offering a 30% reduction in power consumption during operation and consuming only 0.1 W in standby mode. The DL6 EXPERIENCE is a 3-stage motor-housing lifting column (50 x 80 mm). Winner of the prestigious iF Design Award.
- 80 mm/s speed
- PFAS & PVC-free
- 10 years warranty
Desk Frame 1
Desk frame
Desk Frame 1 (DF1) is the flexible and customisable full-frame concept for any sit-stand desk: 2-leg, 3-leg, and bench. DF1 offers countless combinations of top frames, motor-housing lifting columns (standard or high-speed), feet, desk panels, and a wide range of value-adding accessories, such as Anti-collision, Desk Tracking, USB charger, and battery. Standard colours are white, grey, or black – but any RAL Classic Colour is possible. As standard, DF1 features soft start-stop, 0.1 W standby power, and up to 1600 N lifting capacity. Easy “Kick & Click” assembly – just Plug & Play.
- Countless combinations
- Wide range of accessories
- Kick & Click™ assembly
DL19 EXPERIENCE
Lifting columns
Introducing EXPERIENCE™, the new generation of electric lifting columns engineered for superior performance: fast 80 mm/s speed, 800 N load capacity, and 1200 N self-locking capacity per column as standard. EXPERIENCE is designed to last - tested for 25,000 cycles and backed by a 10-year warranty. The system is both PFAS and PVC-free, offering a 30% reduction in power consumption during operation and consuming only 0.1 W in standby mode. The DL19 EXPERIENCE is a 3-stage motor-housing lifting column (70 x 70 mm). Winner of the prestigious iF Design Award.
- 80 mm/s speed
- PFAS & PVC-free
- 10 years warranty
DESKLIFT™ SetPack
DESKLIFT
Selected LINAK® lifting columns are available as a DESKLIFT™ SetPack solution. One box and includes everything you need to assemble your 2-leg desk.
- Set of 2 legs with accessories
- Stable cardboard box
- Fits Euro pallets
DL11 EXPERIENCE
Lifting columns
Introducing EXPERIENCE™, the new generation of electric lifting columns engineered for superior performance: fast 80 mm/s speed, 800 N load capacity, and 1200 N self-locking capacity per column as standard. EXPERIENCE is designed to last - tested for 25,000 cycles and backed by a 10-year warranty. The system is both PFAS and PVC-free, offering a 30% reduction in power consumption during operation and consuming only 0.1 W in standby mode. The DL11 EXPERIENCE is a 3-stage motor-housing lifting column (round Ø70 mm). Winner of the prestigious iF Design Award.
- 80 mm/s speed
- PFAS & PVC-free
- 10 years warranty
DL Feet
Accessories
A wide range of feet for lifting columns with rectangular, square, or round profiles. DL Feet are available for both T and C-shaped desk designs, in two lengths (560 or 710 mm) and three colours (black, grey and white). Choose between on-top or recessed mounting or the click-on version for a fast assembly. With the discreet and unobtrusive design, the DL Feet are also ideal for various full frames. Combine DL Feet with a Desk Frame 1 or a Desk Frame 2 to create a user-friendly, easy-to-assemble standing desk frame.
- For T and C desk designs
- Two lengths – three colours
- Mounting: On top, recessed or Click-on
