Actuator systems in comfort beds is no longer limited to adjusting neck, back, legs or feet up and down. In fact, this type of system will regulate the firmness of the mattress in zones to increase comfort instead.

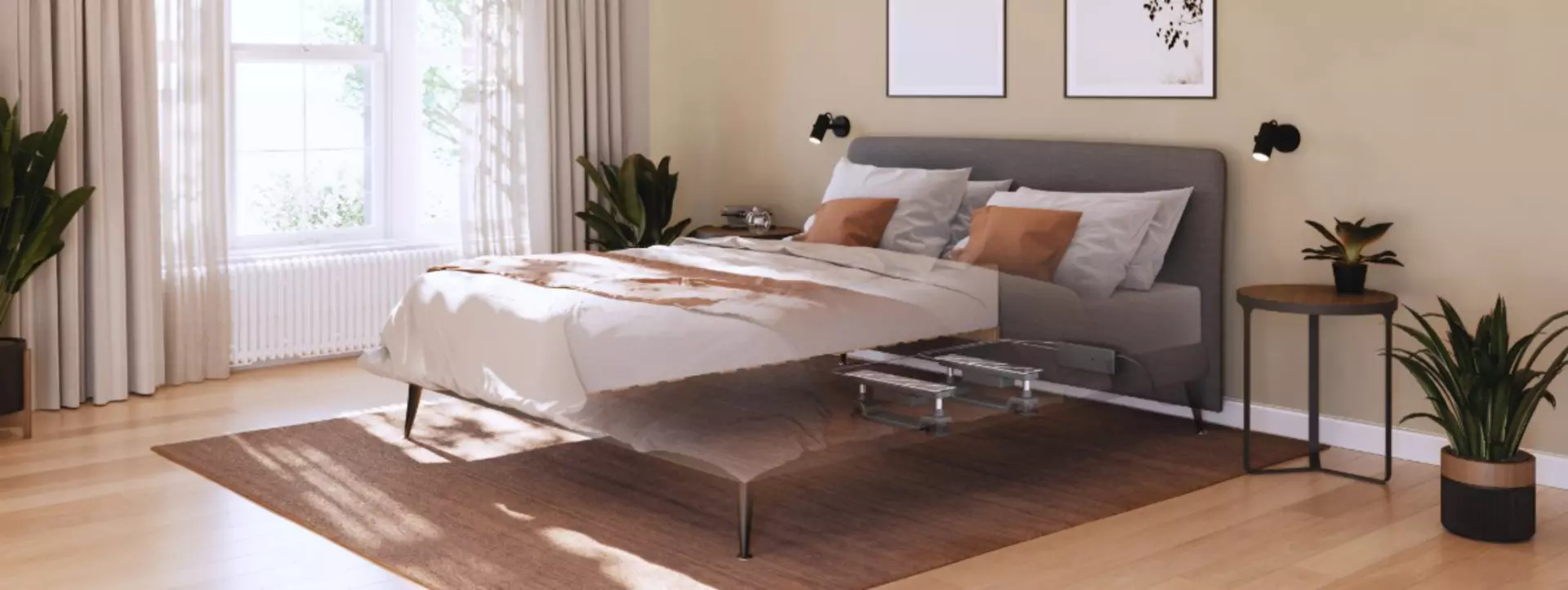

The system is based around the compact linear actuator Baselift™ which can be easily fitted under most beds or in most bed frames. It is essentially an actuator which can adjust firmness of a mattress by pushing upwards into the mattress from below. The setup can vary depending on the need. However, the Baselift™ can run 100 mm, which is all that is needed in the bed comfort zones.
System setup

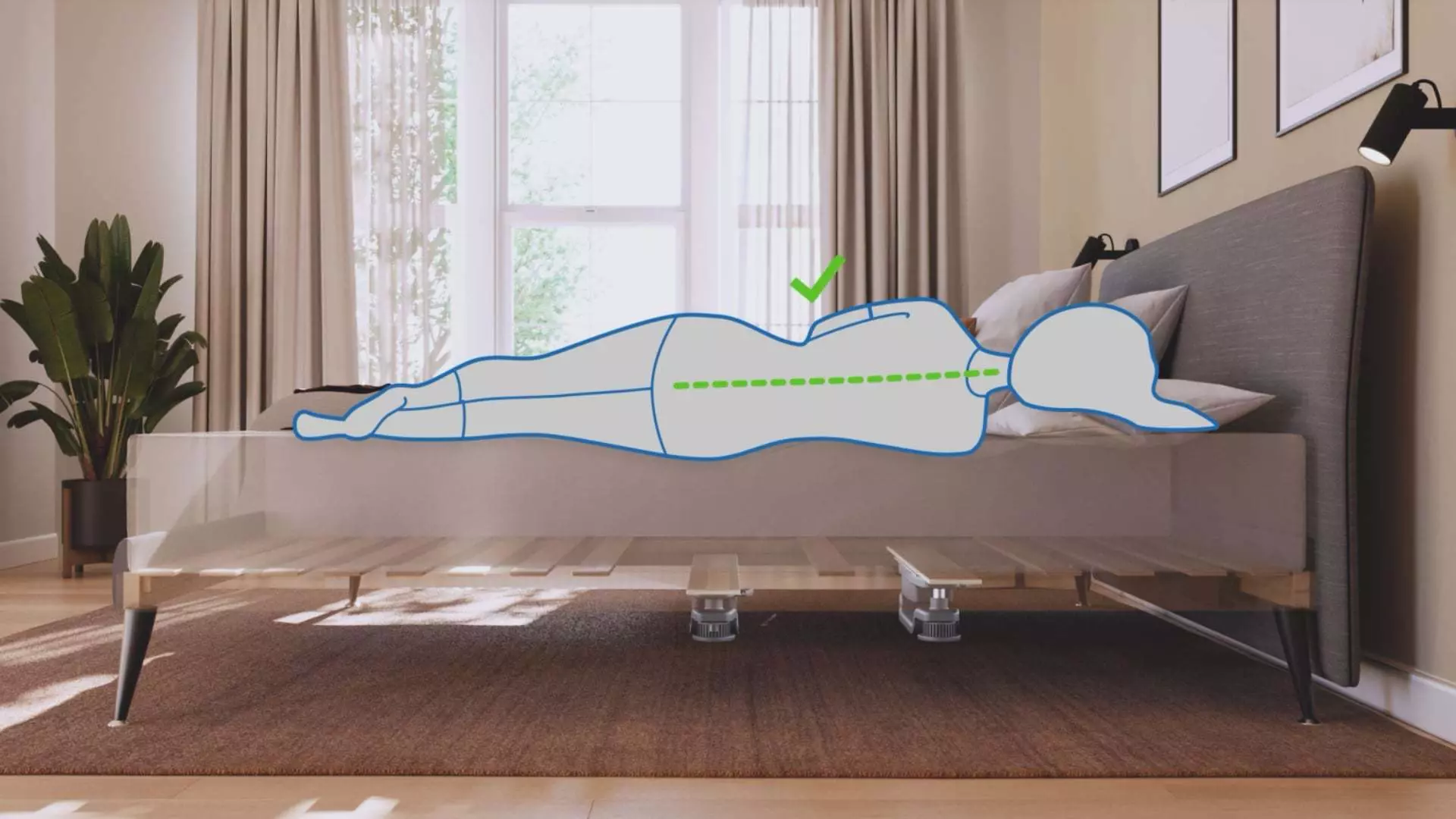

The most common setup is between 1-4 comfort zones which can then be regulated by the user. To mention a few, this could be the hip area and shoulder area. However, the actual possibilities are much more.
Example
A comfort zone regulation system consists of the relevant number of Baselift™ actuators, a CBD6S control box, BLE2LIN dongle, a suitable hand control and the relevant cables.
Baselift™
Linear actuators
Compact electric linear actuator concept for adjustment of shared workspaces such as kitchens, or counters in retail stores as well as mattress firmness adjustments in beds. Fits easily into the base of most kitchen designs.
- Innovative and smart actuator
- Compact and easily integrable
- Vertical lift of surface
CBD6S
Control boxes
Lightweight and slim control box. Plug and Play™ with all DESKLINE lifting columns (standard, EXPERIENCE™, and XL), desk panels, and anti-collision solutions. CBD6S is available as 200 W (2-channel) or universal 300 W (2, 3, or 4-channel). Both are PVC-free, use ZERO™ technology for low standby power (<0.1W), have cable grooves for easy cable management, are only 38 mm high, have low-noise performance, and have a soft start-stop for smooth movement. Optional, the 300 W is available in a version compliant with IT AV standard EN 62368.
- Slim, lightweight, and intelligent
- Plug and play
- 0.1 W standby power
Bluetooth Adapter Bed
Accessories
Bluetooth adapter enabling wireless control of LINAK actuators in comfort beds. With the LINAK Bed Control™ App for Android/iOS, control via a mobile device is possible.
- Ensures wireless control
- No mounting required
- Bluetooth® Low Energy Technology
BP10
Controls
Elegant and discreet wireless control unit for recliners. The unit holder is designed to be integrated into the furniture, securing the unit with a magnet. This ensures freedom of design for your furniture.
- Intuitive
- Easy to fit into your design
- Wireless connection
HC10
Controls
The HC10 is a wireless hand control unit for both single and TWINDRIVE dual actuator systems in comfort furniture. The design is ergonomic and extremely user-friendly.
- Simple intuitive hand control
- Ergonomic and elegant design
- Wireless connection
