Lifting columns

DL21 IC

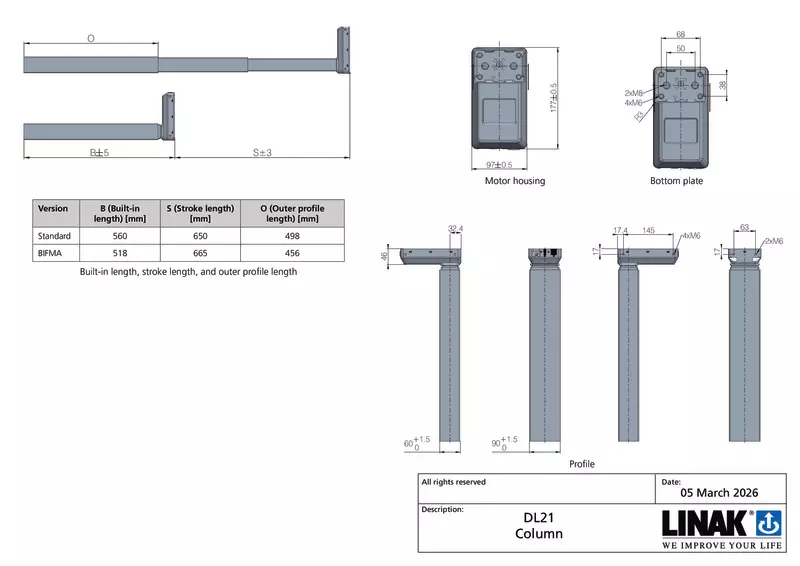

A very sturdy three-part lifting column with a 60 x 90 mm profile. With an integrated controller (IC), the DL21 IC is the perfect choice for adjustable economy office desks using two columns but requiring the maximum adjustment range.
The compact motor housing is almost invisible in the tabletop construction and fits the Kick & Click™ top frame for easy mounting. The PLUS™ design ensures a clean column design without any visible gliding pads.

DL PLUS design play-icon

DL PLUS™ lifting columns designed to inspire

DL21 IC

The DESKLIFT™ DL21 IC (Integrated Controller) is a compact three-part lifting column, based on the DL21 column. The DL21 IC is a perfect choice for adjustable economy office desks using only two columns but needing the maximum adjustment range. For benching desk solutions, the column is available with a bench bracket. The DL21 IC column is very sturdy, and the compact motor housing makes the column easy to integrate in various desk designs.

The DL21 is a PLUS™ column, which ensures a clean design without visible gliding pads. The column is available in several colours, and trim rings for optimised appearance are available in black, grey or white.

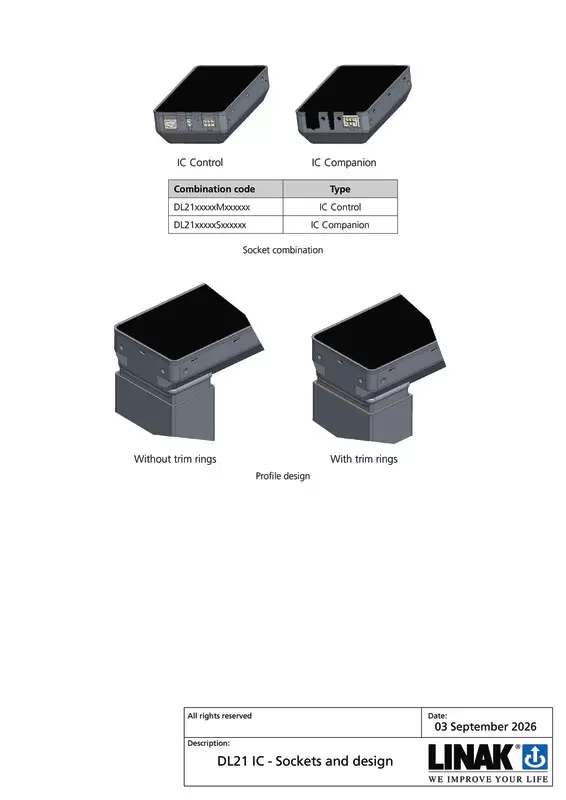

An IC system consists of two columns, a master column and a follower column connected via a motor cable. The master column has a built-in control PCB; this means no separate control box needs to be mounted in an IC system. The mains supply is an external SMPS (Switch Mode Power Supply) unit, and a variety of desk panels can be used for adjusting the desk. A Desk Sensor™ 1 anti-collision dongle can be added to the system to limit material damage to a desk or object in case a collision occurs while driving the desk.

DL21 IC data sheet

View the data sheet as an online magazine or download the PDF.

DL21 IC user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DESKLINE product overview

If you make any kind of desk, table or counter that people work behind, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

MOVE – Why sit-stand desks increase work performance

Reduce sick days and create a modern office environment with electric sit-stand desks. An attractive investment for employers and their employees.
