Flexible, powerful, and reliable performance with LA42
The possibility to specify the rotation of the LA42 motor housing in 10-degree increments to optimally match an application can change the way that manufacturers of high-end health and care devices approach their design challenges.
Flexibility that lets form follow function
In fewer cases will manufacturers be required to work around the design of the actuator; now they can design their application with less concern about the actuator’s fit, and truly allow form to follow function. This is LINAK® at its best, consistently demonstrating a commitment to innovation and continually advancing technology to enhance the lives of those who design and develop cutting-edge solutions.
Reliable and powerful performance with low noise
The LA42 offers a strong and reliable lifting capacity with a push load of 7,000 N and dynamic pull load of 3,500 N – enough to provide rock-solid positioning and low noise where it counts. Its compact form allows designers more options in space-constrained situations while a washable IPX6 standard enables hygienic cleaning in today’s clinical environments.
Configuration freedom
The LA42 is flexible in terms of its unique configuration possibilities and can be linked in systems with several LA42 actuators via the Power Junction Box PJB4, which branches out from a single PCP port to three ports. The LA42 and PJB4 are compatible with control boxes that have PCP 2.0 like CO71 and LIFT50™, where PCP communication allows the LA42 to maintain its actuator channel regardless of which PCP port it is connected to.
The versatile LA42 actuator can operate independently or within a system, irrespective of the system’s complexity. It supports the use of customisable movement patterns through software configuration, making it ideal for a variety of positioning options in the application, such as memory positions, parallel movement, or smooth acceleration curves. With a strong, reliable lifting capacity and low noise, the LA42 actuator offers seamless integration and efficient performance with no compromises.
Quality when it counts

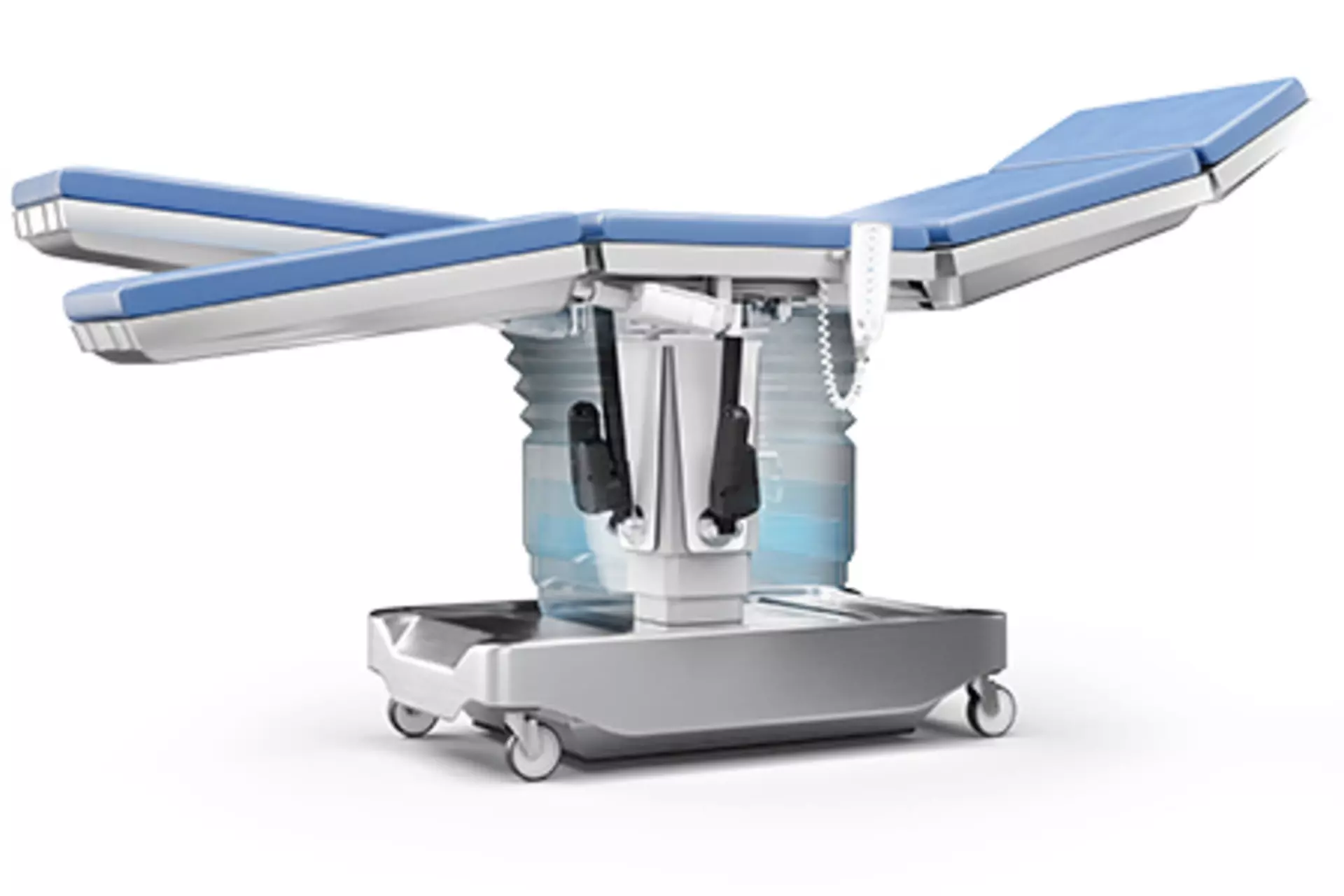

For high-end healthcare applications and care environments where only the best will do, the LA42 is the perfect choice for manufacturers who want to differentiate their products with state-of-the-art flexibility and power in a small package. The LA42 is designed for a wide range of applications within the healthcare sector, such as surgery and x-ray tables, medical carts, hospital beds, couches, and dental chairs.
If you need information about the LA42 actuator, please explore the LA42 product page, or contact us directly.
Related documents

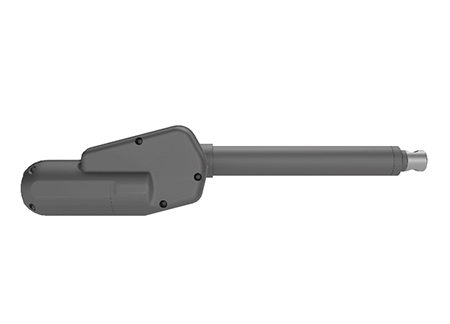

LA42
Linear actuators
Specifically designed for medical use, the LA42 actuator with its flexible motor housing orientation offers developers greater flexibility in their design of applications requiring a quiet, strong, and stable actuator.
- Max. load: 7,000 N push (3,500 N pull)
- Flexible motor rotation
- IPX6
LA44
Linear actuators
Very powerful linear actuator with several safety features. Ideal for applications such as patient lifts, dental chairs and various healthcare beds. Max thrust: 12,000 N push.
- Max. load: 12,000 N
- Max. speed: 14.0 mm/s
- IPX6
LA31 CARELINE
Linear actuators
Strong and low-noise linear actuator designed for beds in homecare, nursing home or hospital settings. Works with all LINAK healthcare control boxes. Classified IPX6. Max thrust: 6,000 N.
- Max. load: 6,000 N push (4,000 N pull)
- Max. speed: 32.0 mm/s
- IPX6
LA40
Linear actuators
Durable actuator with powerful lift (up to 8,000 N) made for a range of healthcare applications, such as beds, couches and chairs for treatment, wheelchairs, operating tables, patient lifts and dental chairs.
- Max. load: 8,000 N
- Max. speed: 16.0 mm/s
- IPX6 Washable DURA™
LA34
Linear actuators
Powerful linear actuator (10,000 N push / 4,000 N pull) in a compact design. Made partly of low weight composite materials. Ideal for both medical and industrial applications.
- Max. load: 10,000 N
- Max. speed: 18.0 mm/s
- IPX6
Surgery table
An increased focus on treatment and surgery due to the ageing population and a general interest in well-being drives the need for surgery tables. Using LINAK system solutions allows for optimal movement, improved safety and connectivity to digital services – all leading to efficiency for the healthcare staff.
X-ray table
Due to the ageing population we see an increased focus on treatment and the need for diagnostic imaging using X-ray tables. To increase efficiency for healthcare staff, LINAK actuator systems create movement and improve safety while ensuring connectivity to digital services.

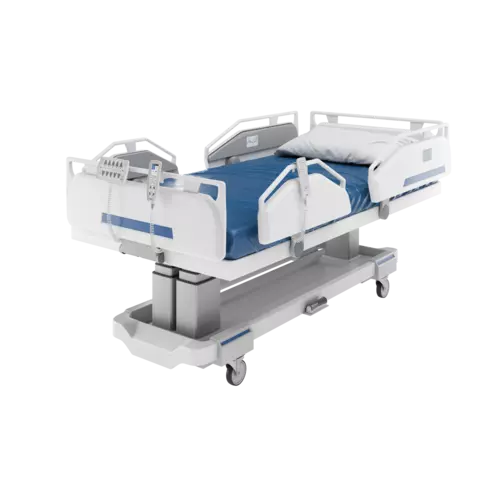

ICU beds
