Linear actuators

LA20

LA20 is a small inline actuator suitable for a variety of healthcare applications. It is a nicely designed inline actuator with a relatively high load capacity of 2,500 N. The LA20 inline actuator is ideal where space is limited and where design matters.

LA20

Stands out for performance, fits in with design
LA20 is a slim inline actuator created to cover a wide range of applications, where design, size and power are crucial. The combination of a high lifting capacity of 2,500 N with its robust but stylish and small form factor, makes the LA20 the ideal solution for many of today’s demanding applications.

  • Created for extended application flexibility
  • Highly efficient actuator with a slim form factor
  • When design demands uncompromising compact power
  • Choice of three powerful motors of 12 and 24 volts in an actuator with a slim envelope

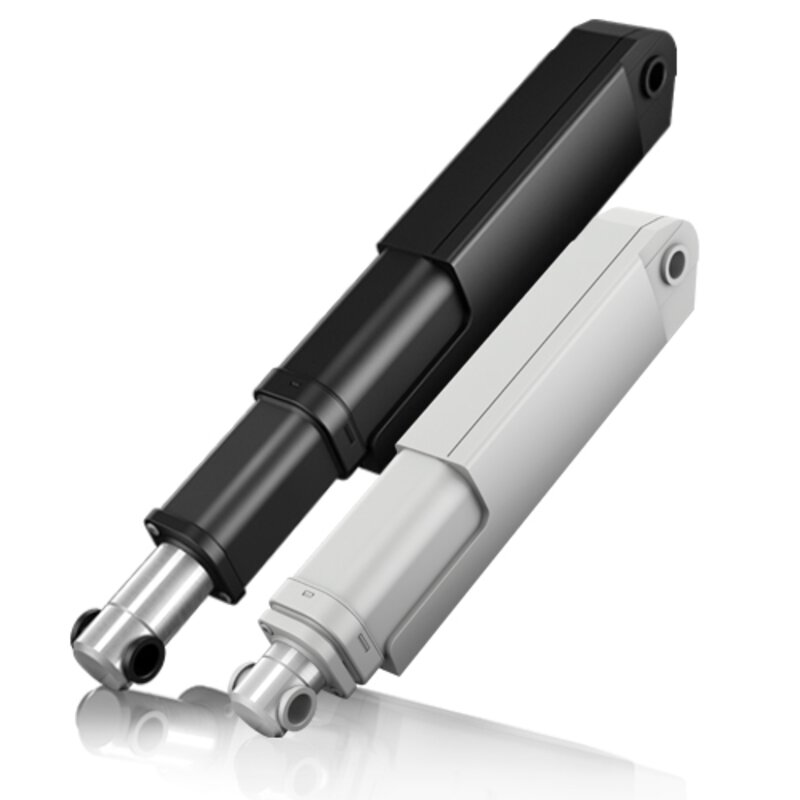

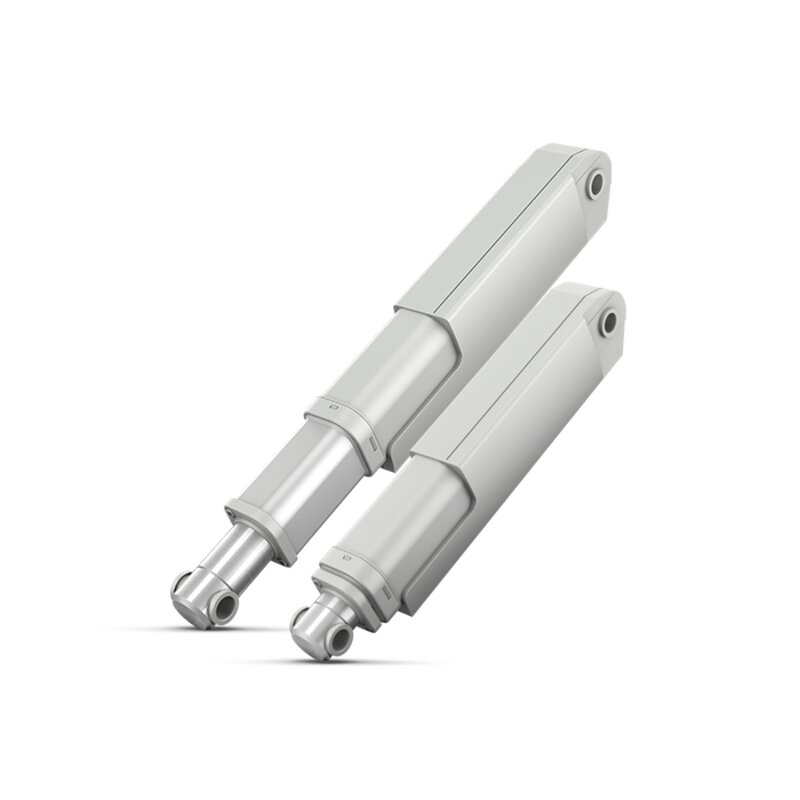

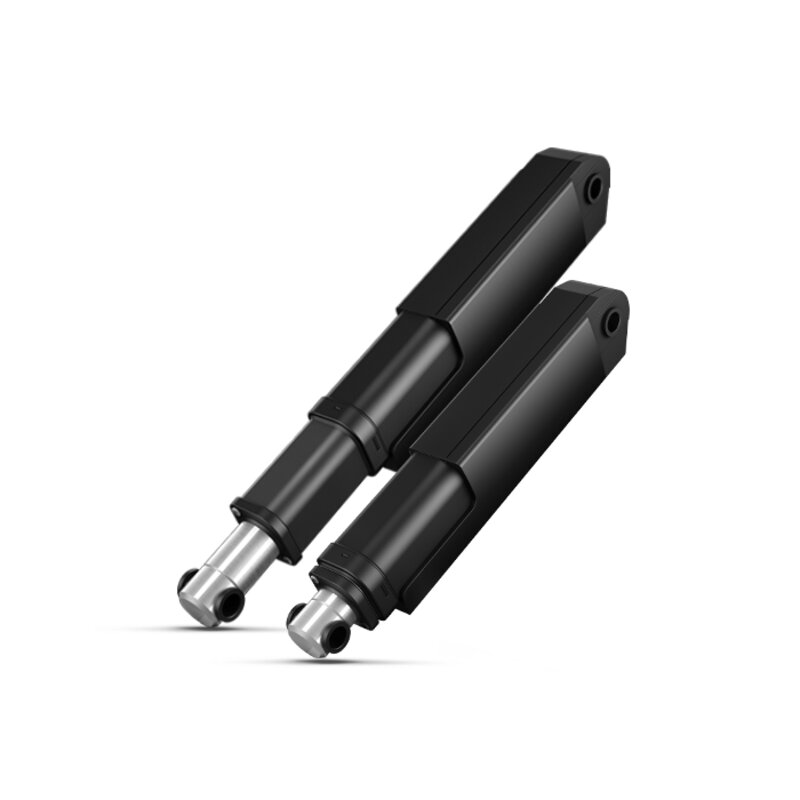

  • Slim envelope, with black or grey appearance for design flexibility
  • Choice of finishes to match your application, with option for in-tube mounting
  • High lifting capacity of 2,500 N push - and up to 900 N pull
  • Inline actuator with a slim envelope profile gives you the option of in-tube mounting
  • Water-resistant with medical approvals for demanding healthcare environments
  • Feedback signals for positioning and electrical endstop
  • Easy to exchange cables

LA20

View the data sheet as an online magazine or download the PDF.

Linear actuators and electronics user manual

This user manual will tell you how to install, use and maintain your LINAK electronics. We are sure that your LINAK system will give you many years of problem-free operation.

MEDLINE & CARELINE product overview

Dive into the wide variety of innovative MEDLINE & CARELINE products that can help you improve your hospital and healthcare equipment.

Actuator systems for patient lifts

Safe patient handling and proper ergonomics. The system for patient lifts gives you a lift in production, in usage and in service. LINAK takes safe patient handling very seriously.

Focus on wheelchairs

Increasing comfort, reliability and safety for wheelchair users.

Actuator systems for operating tables

Power, precision, and smooth movement in advanced surgery applications

Focus on dental chairs

LINAK actuator systems help create smooth movement and comfort in dental chairs.

Focus on couches and tables

Flexible functionality and improved ergonomics are some of today’s needs for treatment and examination couches.

Safety folder

Different applications need different safety features. Regardless of what healthcare application you are designing, LINAK offers a wide variety of standard and optional safety features.

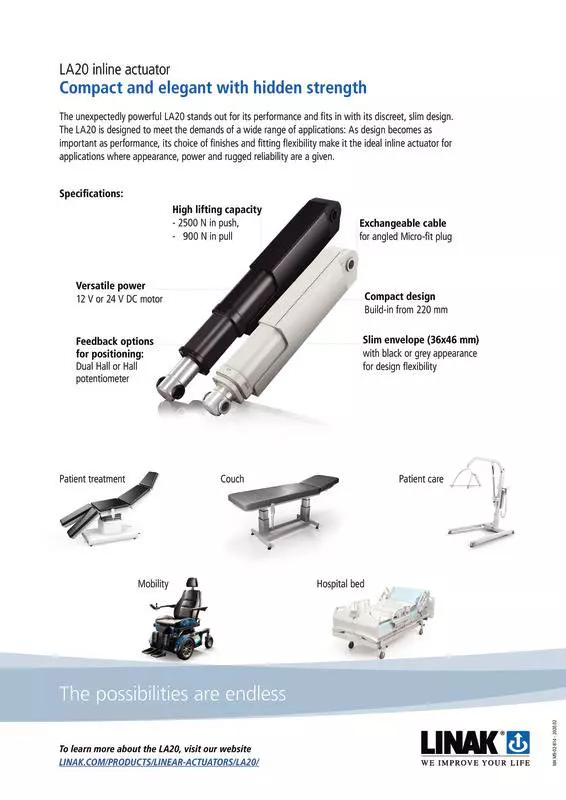

Compact and elegant with hidden strength

The unexpectedly powerful LA20 stands out for its performance and fits in with its discreet, slim design.

How do linear actuators work?

A common type of linear actuator is an electric linear actuator. It is made up of three main components: spindle, motor and gears. The motor can be AC or DC depending on the power needs and other influencing factors.

Once a signal is sent by the operator, which can be through a control as simple as a button, the motor converts the electric energy into mechanical energy, rotating the gears connected to the spindle. This rotates the spindle and causes the spindle nut and piston rod to travel outwards or inwards depending on the signal to the actuator.

As a rule of thumb, a high thread count and smaller spindle pitch will cause slow movement but a much higher load capacity. On the other hand, a low thread count, and higher spindle pitch, will favour fast movement of lower loads.


Logo for Actuator Academy about actuator technology

Visit the Actuator Academy™
Explore the aspects of what makes an actuator ideal for use with industrial machinery and discover the technology behind it.

Welcome to the LINAK Actuator Academy™



What are the different types of electric linear actuators?

There are many types and sizes of electric linear actuators. From small and compact that fit into tight spaces, such as in wheelchairs, to large and powerful to move heavy items like a wheel loader engine hood. In addition to size and power, there are also many different designs of electric linear actuators.

The original design has a motor housing that is outside of the gear and spindle profile. But when space is limited, an inline actuator is used so that the motor only extends the shape of the profile. For desks and some medical applications, lifting columns are used for an inline motor housing with two and three-stage options.

Since the founder and CEO of LINAK, Bent Jensen, made his first electric linear actuator in 1979, the company has continued to develop new actuators and refine the innovative technology behind them to improve movement solutions for several industries.

LINAK designs and manufactures many types of linear actuators and lifting columns with various speeds, stroke lengths, and capacities. From the compact, inline LA20 to the robust LA36, LINAK actuators are built to fit almost any application.

With an almost endless list of customisation options to help design an actuator specifically to fit unique applications, the range of LINAK actuators is even greater than the vast product range listed.

LINAK products

What is a linear actuator?

A linear actuator is a device or machine that converts rotational motion into linear motion and linear movement (in a straight line). This can be done through electric AC and DC motors, or the movement could be powered by hydraulics and pneumatics.

Electric linear actuators are a preferred option when precise and clean movement is needed. They are used for all types of applications where tilting, lifting, pulling or pushing with force is needed.

LINAK business areas



Move on - go electric!

Learn about the advantages of actuator solutions compared to hydraulic systems.

Online Magazine



What is a linear actuator used for?

Actuators can be found anywhere, in homes, offices, hospitals, factories, farms, and many other places. Our electric actuators bring movement to the office and home with adjustable options for desks, kitchens, beds, and couches. In hospitals and medical centres, you will find actuators adding movement to hospital beds, patient lifts, surgery tables and more.

For industrial and rugged environments, electric linear actuators can replace hydraulic and pneumatic solutions found in agriculture, construction, and in industrial automation equipment.

LINAK business areas

Why use a linear actuator?

Electric linear actuators increase efficiency and give users precision movement through a variety of control options and accessories. Control options for electric linear actuators include handsets, footswitches, desk controls, computer software, mobile apps and much more.

With no need for hoses, oils, or valves, electric linear actuators require no maintenance and create a safe environment for users. High-quality electric actuators are also put through a variety of tests that push the actuators to extremes. This is done to ensure optimal performance at any given time in any situation. They are also designed, along with their accessories, to be easily mounted and installed in a variety of applications,

making it easy for anyone to add precision movement where they need it. Being electric enables the addition of smart features like CAN bus (LINAK offers CAN SAE J1939 and CANopen for actuator controls). Integrated Controller (IC) solutions can provide various position feedback options, virtual limits, soft start and stop, current limitation, and adjustable speed.
