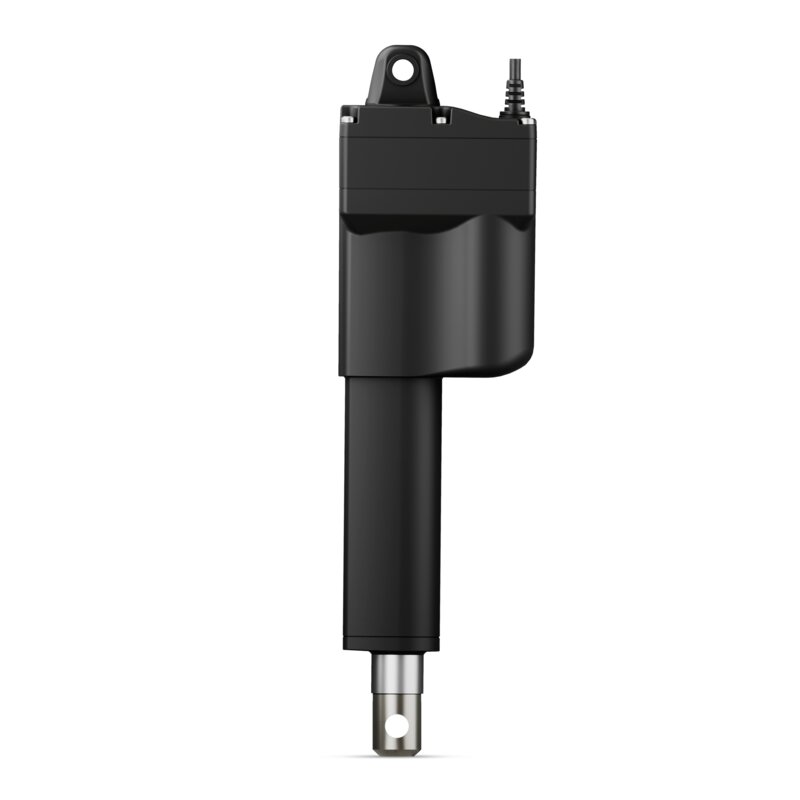

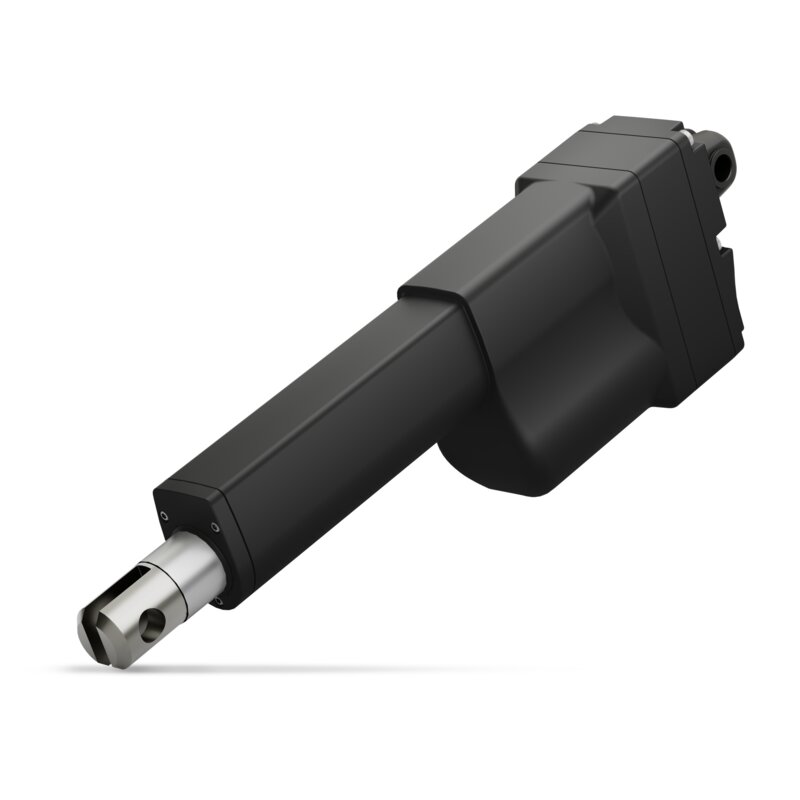

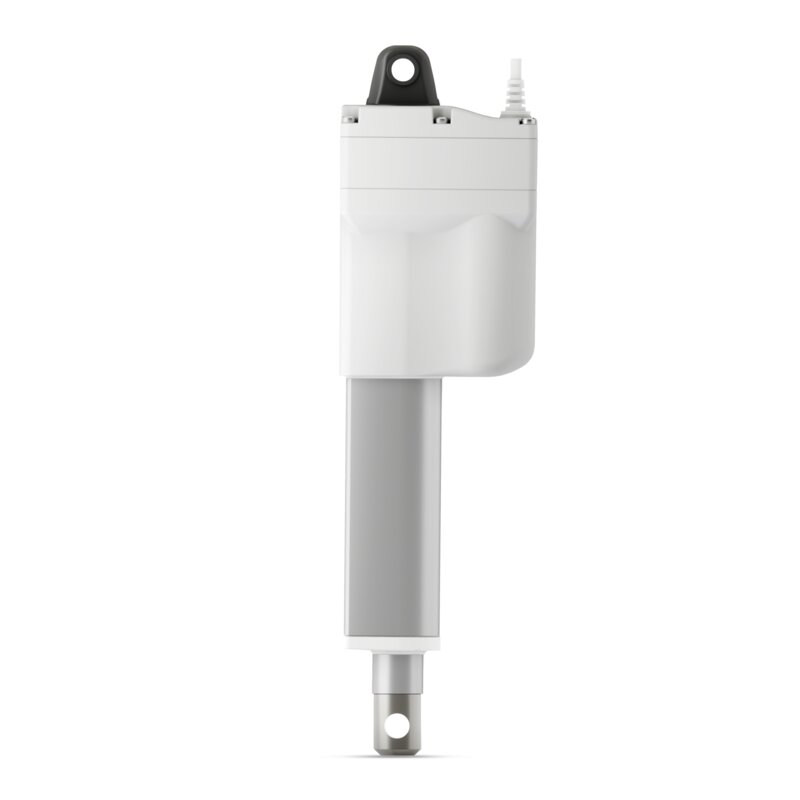

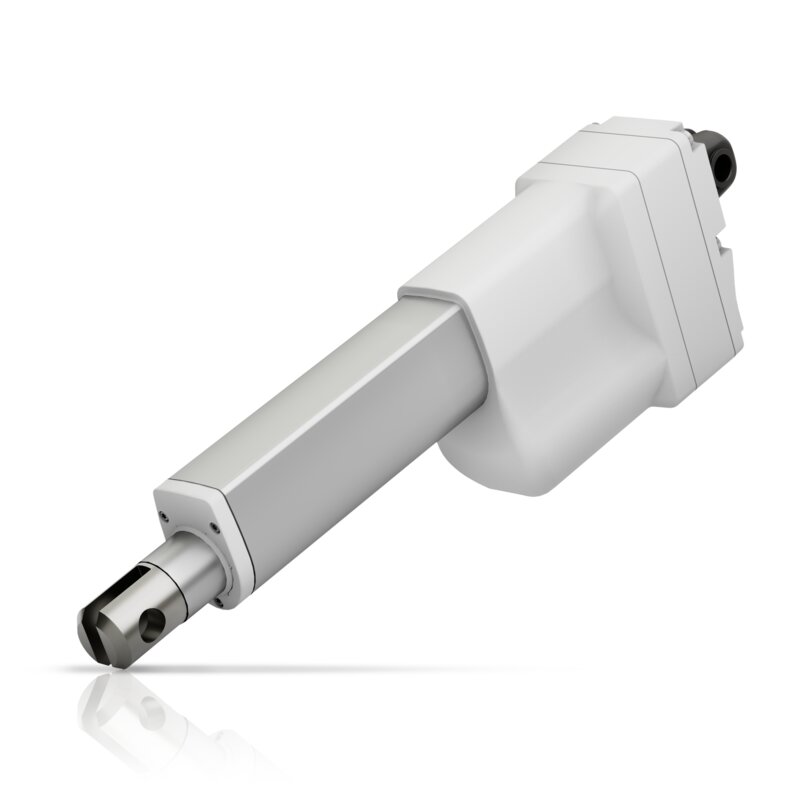

KA19
Compact size, powerful performance. Delivering up to 3,000 N of force, the KA19 actuator is ideal for space-critical healthcare applications where reliable performance and a compact footprint are essential.- Max. load: 3,000 N
- Max. speed: 35.8 mm/s
- IPX6
KA19
The KA19 is a compact and fast actuator with a maximum load of 3,000 N.
It is designed for a wide array of medical applications, but its strong performance and compact design makes it ideal for space critical applications such as wheelchairs, dental chairs, surgery tables and ICU beds for leg extension.
The actuator has a fixed cable with 6-pin Mini-Fit connector which suits standard LINAK control boxes (CA/CO series).
CO71
Linear actuators
Powerful 4-channel LINAK OpenBus™ control box for advanced actuator systems used in various hospital, care and treatment applications, such as hospital beds, couches and tables and treatment chairs. Comes with 350 W SMPS, easy cable management, optional IPX6 Washable DURA™ water protection and Bluetooth® technology. Ready for CO-Link™ operation.
- 4-channel, OpenBus™ with Bluetooth®
- Power: 350 W Switch Mode Power Supply
- IPX6 Washable DURA™
HB30
Linear actuators
LINAK handset control unit, ideal for actuator systems in patient lifts, treatment chairs, couches and tables. Available for both analogue and OpenBus control boxes.
- OpenBus™ or analogue
- Up to 8 buttons LEDs
- IPX6
BA22
Linear actuators
Next generation Li-Ion battery designed for LINAK control boxes with improved safety profile and dual PCP connectors. Ideal for hospital and medical applications where IPX6 Washable DURA™ protection class is required. Supported by a 5-year warranty, our Li-Ion batteries ensure reliability and performance through rigorous testing and proven technology.
- LED charging indicator
- 2.85 Ah stackable Li-Ion battery
- IPX6 Washable
C-arm
The call for precise and flexible movement drives the need for C-arms. Using LINAK actuator solutions allows great design flexibility and freedom to customise the C-arm for optimal movement, functionality and safety.
Shower chairs
The need for multi-function shower chairs designed to support caregivers in the shower and in personal hygiene situations is increasing. Using LINAK actuator solutions for modern shower chairs allows for greater design flexibility with increased customisation opportunities, as well as additional safety features in the application.
Wheelchair solutions
LINAK actuators help create precise and low-noise adjustment of height, leg support, and backrests in modern wheelchairs.
ICU beds
Serious and critical illness drive the increased need for beds in intensive care units. Using LINAK actuator solutions allows great design flexibility and freedom to customise the ICU bed for optimal movement, functionality and safety.
Surgery table
An increased focus on treatment and surgery due to the ageing population and a general interest in well-being drives the need for surgery tables. Using LINAK system solutions allows for optimal movement, improved safety and connectivity to digital services – all leading to efficiency for the healthcare staff.
