LC1 Column Kit
The LC1 Column Kit is an all-inclusive solution for industrial workstations that comes complete with one or more columns, control box, operating panel and cables ensuring seamless assembling of your workstation base. The LC1 Column Kit is relevant where low installation height is required, when the total workload capacity is max 1,600 kg, and where IP classifications are not a factor.- 1-4 columns
- Loads up to 1,600 kg
- Powerful and long stroke
LC1 Column Kit

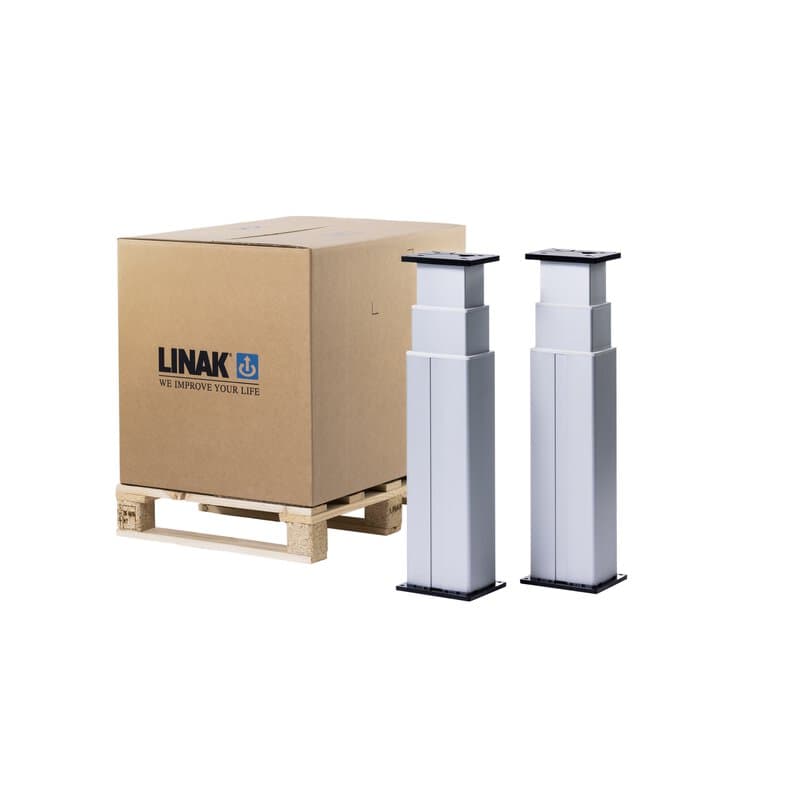

The LC1 Column Kit provides a convenient solution for machine builders designing and building industrial workstations. The kit includes everything you need to build the workstation base: LC1 DESKLINE lifting column(s), control box (CBD6S), operating panel (DPF) and cables, in a one-box delivery.
Download the associated documentation, and use the 3D drawings when designing your industrial workstation.

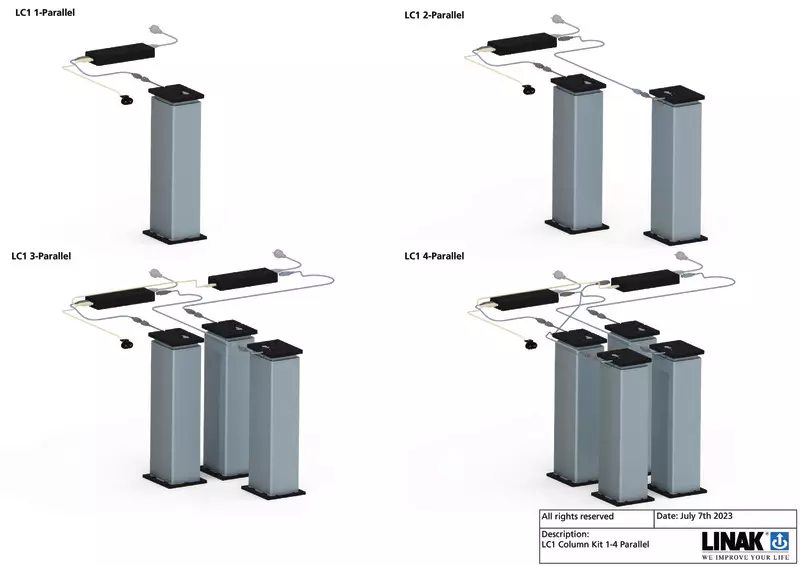

You can use a single column, a parallel system with 2-4 columns – or even combine parallel kits with up to 16 columns in multi-parallel systems. The end plates make installation easy.
Options available:
- LC1 Column Kit – single (LC1S0001DK)
- LC1 Column Kit – 2 parallel (LC1P0001DK)
- LC1 Column Kit – 3 parallel (LC1P0002DK)
- LC1 Column Kit – 4 parallel (LC1P0003DK)
LC3 Column Kit
Lifting columns
The LC3 Column Kit is a plug and play solution for industrial workstation bases. The kit is all you need to build a workstation base: operating panel, cables, column(s) and control box – everything in one single box. Choose an LC3 Column Kit if your workstation base requires low installation height and long stroke length, a waterproof solution and a total workload capacity of up to 2,400 kg.
- 1-4 columns
- Loads up to 2,400 kg
- Waterproof
BL1 Column Kit
Lifting columns
The BL1 Column Kit is part of our plug and play solutions for industrial workstations. The kit has everything you need to build a workstation base: column(s), operating panel, cables and control box – all collected in one single box. The BL1 Column Kit is ideal for workstations that require low installation height, a waterproof solution, and a total workload of max 800 kg.
- 1-4 columns
- Loads up to 800 kg
- Waterproof
DL2 Column Kit
Lifting columns
The DL2 lifting columns are available as plug and play column kits with column(s), control box, cables and operating panel for industrial workstations. A DL2 Column Kit conveniently includes everything you need to assemble your workstation base – all in one box. A DL2 Column Kit is suitable for workstations where a low noise level is required, where IP classifications are irrelevant, and where the total workload is max. 600 kg.
- 1-4 columns
- Loads up to 600 kg
- Robust and versatile
