Halve the time spent on desk assembly
Traditionally, it takes 12 screws to mount the two columns of a typical height-adjustable office desk to the top frame. But with the LINAK Kick & Click™ mounting solution, the only screws you need are the ones attaching the tabletop. The rest is just ‘kick’ gently and ‘click’ – your desk is ready!
Using Kick & Click™ is easy and very intuitive. There are pictograms with visuals showing the product parts, and it is obvious where you need to ‘kick’ (or just push). The ‘click’ sound indicates that assembly has been done correctly.
Several columns, full frame systems, and a wealth of options
No matter whether you want to design a C- or a T-Desk, there are literally countless options. LINAK Kick & Click™ comes in three versions – all with their own advantages. Regardless of your choice, you can include parts and products across the product range. Also, when your market requires a full frame desk system – consisting of lifting columns, feet, control box, and desk panel.
LINAK focuses on making truly Plug & Play™ solutions. This includes a Kick & Click 3rd leg kit for large office desks. With the increasing number of different columns in the DESKLIFT (DL) portfolio, the options are multiple, leaving the designers and manufacturers with absolute freedom to design.
Enjoy an elegant design with hidden cables
LINAK lifting columns come in various shapes, sizes and colours. Whatever suits your design, we have made sure that all LINAK parts match, and we have made sure visible cables do not disturb your designs. Once assembled, all cables are easily hidden in ducts within the frame – again, no tools or clips required.
Smart, fast, easy, green and quite simply cost-efficient.
For further information, please contact your local LINAK subsidiary or distributor.
Related applications
Kick & Click™ top frame
Accessories

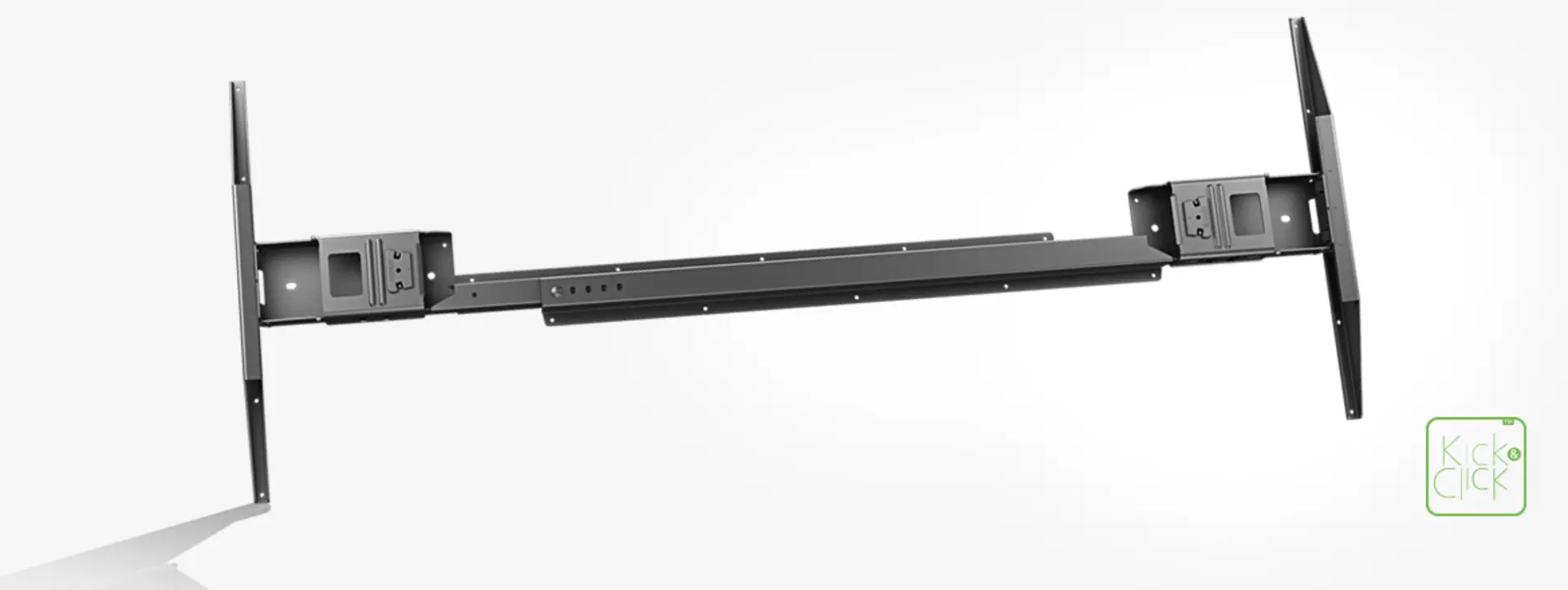

The LINAK Kick & Click™ top frame is the smart and intuitive solution for mounting DESKLIFT™ columns to the tabletop. The Kick & Click top frame comes in different variants and sizes fitting various tabletop widths: 100 - 130 cm (K&C Adjustable Compact); 140 - 200 cm (K&C Adjustable Standard); 120 cm (K&C Fixed); as well as the K&C Base variant for flexible widths. All variants are made for easy assembly - simply “kick” and “click” the different parts together. No toolboxes, screws and bolts needed.
- Intuitive mounting solution
- Fast assembly, no screws
- Available in 3 versions
DL5
Lifting columns
Reinforced 50 x 80 mm, 2-stage lifting column with compact motor housing, designed for extra strength, stability, and sturdiness. Available in 800 N and 1200 N versions, this lifting column offers versatile use: from office desks to heavy-duty applications such as mobile charts, packaging or sorting desks, and other industrial workstations. Optionally, the DL5 is available as DL PLUS™ without visible gliding pads and with bench brackets.
- Rectangular 50 x 80 mm
- 2-stage
- Motor housing
DL6
Lifting columns
Versatile 3-stage lifting column with a compact motor housing compatible with multiple desk designs – for both industry and office. Reinforced 50 x 80 mm column and optimised motor-housing design for extra strength, stability, and sturdiness. Optionally, the DL6 is available as DL PLUS™ (no visible gliding pads); as DL PLUS™ High-speed (60 or 80 mm/s); with PIEZO™ anti-collision; 1200 N load per column; and bench bracket.
- Rectangular 50 x 80 mm
- 3-stage
- Motor housing
DL8
Lifting columns
Cost-effective electric lifting column for a variety of office desks. Upside down construction gives it a compact and clean design. Sturdy, easy to mount, low-noise and smooth movement as either single column or in parallel drive setup.
- Round Ø 63.5 mm
- 2-stage upside down design
- Motor housing
DL9
Lifting columns
Long-stroke electric column for a wide range of adjustable office desks and TV / Monitor stands. Upside down construction enables compact and clean design. Sturdy, easy to mount, low-noise.
- Round Ø 70 mm
- 3-stage upside down design
- Motor housing
DL10
Lifting columns
Cost-effective 2-part lifting column in a compact and round design. This low-noise and very robust column is compatible with multiple types of adjustable office desks and tables. The column fits the LINAK Kick & Click™ top frame for easy mounting. Available in several standard colours and as DL10 PLUS™ (no visible gliding pads). The column is compatible with DESKLIFT™ Feet.
- Round Ø 70 mm
- 2-stage
- Motor housing
DL11
Lifting columns
Elegant, round 3-stage lifting column ideal for both sit-stand desks and display and monitor stands. Sturdy Ø70 mm column with optimised motor-housing design for extra strength and stability. Optionally, the DL11 is available as DL PLUS™ (no visible gliding pads); as DL PLUS™ High-speed (60 or 80 mm/s); with PIEZO™ anti-collision; as DL11 XL (optimised for display and monitor stands).
- Round Ø 70 mm
- 3-stage
- Motor housing
DL15
Lifting columns
Low-noise electric column allowing smooth adjustment of desks and tables. Optimal for parallel drive in desks or tables. This upside down column is sturdy and requires no crossbar, leaving you with design freedom.
- Rectangular 43.5 x 73.5 mm
- 2-stage upside down design
- Motor housing
DL16
Lifting columns
Long-stroke and low-noise electric column intended for desks and tables without crossbar. Ideal for both larger desks and conference tables.
- Rectangular 50 x 80 mm
- 3-stage upside down design
- Motor housing
DL19
Lifting columns
A very sturdy 3-stage lifting column with motor housing and a unique square profile design (70 x 70 mm) ideal for office desks and tables. Fits with the LINAK Kick & Click™ top frame, making it very easy to mount. Optionally, the DL19 is available as DL PLUS™ design (no visible gliding pads); as DL PLUS™ High-speed (60 or 80 mm/s); with PIEZO anti-collision; bench bracket; and/or trim rings for optimised appearance.
- Square 70 x 70 mm
- 3-stage
- Motor housing
