Find the most suitable electric actuator system for your furniture in the feature comparison tables. We focus on solutions for adjustable beds and recliners. The actuator system is designed to work with any type of furniture you choose.
Answering with feature comparison
Do you sometimes find yourself asking these questions?
- What is the difference between a Standard and an Advanced dual actuator from LINAK?
- Which ones are PVC Free?
- Which ones can be controlled via an app?
- Which actuator is the most powerful?

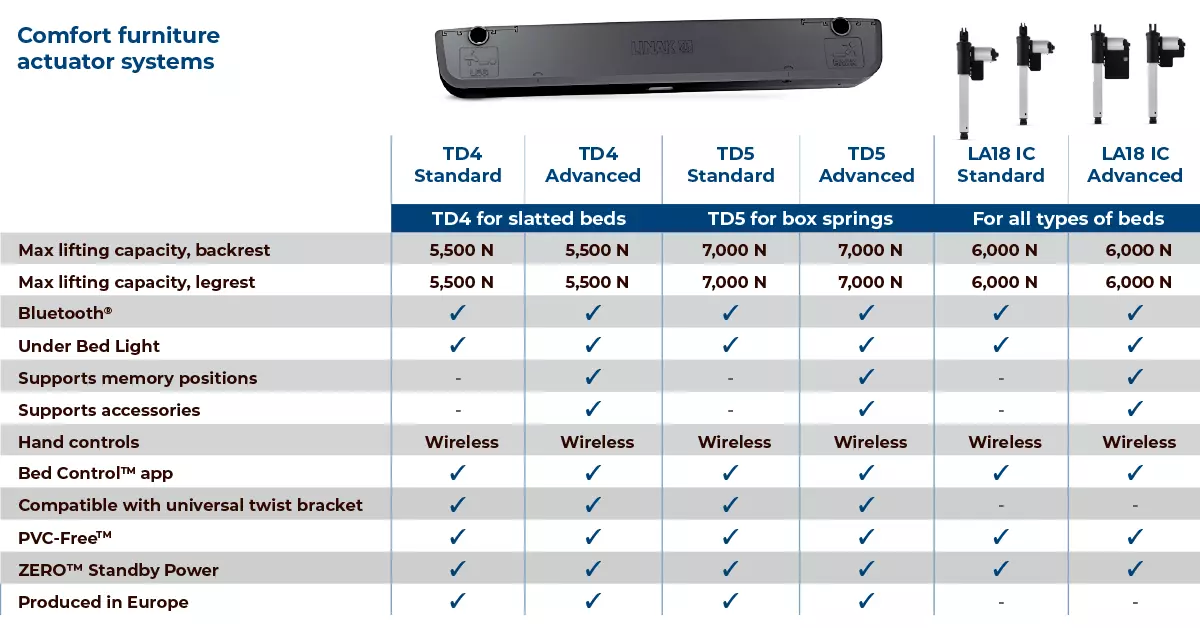

The comparison table below provides an overview of the basic features of each electric actuator solution for adjustable comfort beds. If you have further questions, please contact your local LINAK office.
Related documents
TD4 Standard
Dual actuators
Low-weight all-in-one TWINDRIVE electric actuator ideal for slatted beds. Smooth and low-noise adjustment easy to control with Bluetooth hand controls or your Smartphone.
- Max load: 5,500 N
- ZERO™ standby power
- Wireless communication
TD4 Advanced
Dual actuators
Low-weight all-in-one TWINDRIVE electric actuator ideal for slatted beds. Smooth and low-noise adjustment easy to control with Bluetooth® hand controls or your Smartphone.
- Max load: 5,500 N
- Wireless communication
- Memory function
TD5 Standard
Dual actuators
Low-weight all-in-one TWINDRIVE® electric actuator ideal for box spring beds with a force of up to 7,000 N in both back and leg end of the bed. The TD5 Standard is for bed systems requiring back and leg adjustment and, as well as a range of contemporary features.
- Max load: 7,000 N
- ZERO™ standby power
- Wireless communication
TD5 Advanced
Dual actuators
The TWINDRIVE® TD5 is a dual actuator specially developed for box spring beds, where a high force is required. With a force of 7,000 N on both back and leg ends, the TD5 is the strongest dual actuator in the portfolio. The TD5 Advanced is for more advanced bed systems requiring up to two extra motors in addition to the back and leg adjustment.
- Max load: 7,000 N
- Wireless communication
- Memory function
LA18 IC Standard
Linear actuators
LINAK® LA18 IC Standard is a solution designed for adjustable comfort beds. A system comprises one primary and one (or more) secondary actuators – performing 6,000 N push. It has a compact design and is available with a click-on back fixture that enables easy and fast installation. Integrated is a Bluetooth® and a green light that indicates if the system has power on.
- Max. load: 6,000 N
- Wireless communication
- Quiet and powerful
LA18 IC Advanced
Linear actuators
LINAK® LA18 IC (Integrated Controller) Advanced is a compact solution for adjustable comfort beds – including memory function. This single actuator system is one primary and one (or more) secondary actuators. Integrated is Bluetooth®, Under Bed Light and a green light indicating if the system is connected to power. The set is available with an easy click-on back fixture.
- Max. load: 6,000 N
- Supports favourite positions
- Connects massage motors directly
WiFi2LIN Module
Accessories
This Wi-Fi module is part of the LINAK Voice Control solution for adjustable beds. Combined with the customised Bed Control™ IoT App, it enables owners of adjustable comfort beds to install and use their LINAK Voice Control solution through their Google Home or Amazon Echo unit.
- Enable the bed with Wi-Fi
- Easily mounted under the bed
- Part of the Voice Control Solution
Voice control
Controls
LINAK solution allows users of adjustable comfort beds to connect their bed to their Alexa or Google Assistant-enabled devices. This enables bed brands and manufacturers to enter the future of home automation. In combination with a WiFi2LIN module, this solution is everything you need – easy to set up, intuitive to use.
- Control the bed by voice
- Works with Ok Google
- Works with Amazon Alexa
